E20-00A by zf electronic systems

E20-00A

ZF Electronic Systems

Snap Action Switch - DPDT - Button - 20A@125/250VAC 2A@48VDC - Quick Connect - Screw Mount ...

Datasheet
RoHS Compliant
Box Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The ZF Electronics Corp part E20-00A is a high-quality Snap Action Switch that features a Double Pole Double Throw (DPDT) configuration. This switch is designed with a convenient button for easy operation. It can handle a maximum current of 20A at 125/250VAC and 2A at 48VDC, making it suitable for various applications. The Quick Connect terminals facilitate quick and easy installation, while the Screw Mount design ensures secure and reliable mounting. Trust in the ZF Electronics Corp E20-00A Snap Action Switch for excellent performance and durability.

Product Highlights:

  • 5 current ratings
  • Choice of actuator styles
  • 3 terminal types (optional screw terminals available — consult factory)
  • 3 contact arrangements
  • Long-life coil spring mechanism
  • High-temperature 150°C and 200°C available on select models (consult factory)

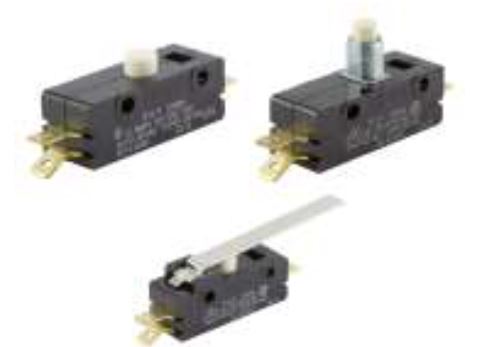

  • Includes E19, E19A, E20, E25, E28 and G20 Series.

Search Keywords: E2000A

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
ZF Electronic Systems
Part No:
E20-00A
Alias/AKA:
0E2000A0
RoHS:
Yes
HTS:
8536509040
COO:
MX
ECCN:
EAR99
Supplier Standard Pack  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
150
Package Type:
Box
Mounting:
Through Hole
Pole Throw Configuration:
DPDT
Switch Configuration:
N.O./N.C.
Actuator Material/Style:
Thermoplastic Nylon/Button
Contact Rating @ Voltage:
1491.4 A
Maximum Movement Differential:
0.38 mm
Operating Force:
12.55 N
Termination Style:
Quick Connect
Dimension:
66.67 x 16.28 mm
Body Orientation:
Straight
IP Rating:
N/A

IN STOCK: 605

Can Ship immediately

MOQ for In Stock Qty: 5

MOQ for out of Stock Qty: 225

Factory Lead-Time 22 Weeks

Qty
Unit Price
5
$9.58
50
$9.15
100
$8.98
225
$8.69
450
$8.57
675
$8.40
900 +
$8.03
Log in for special pricing
Please Note: Tariffs may apply for U.S. shipments
