782XBXM4L-120A

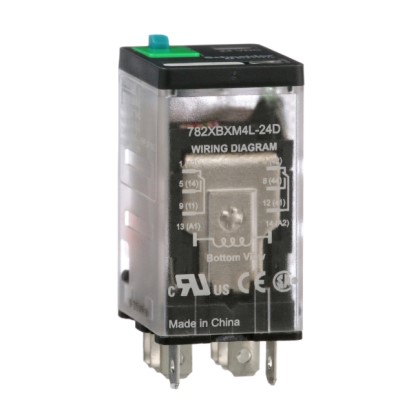

Power Relay - General Purpose Relays - DPDT - LED clear cover - lock push button - faston terminals - 15A - 120V AC - 2NO + 2NC ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Discontinued
Certificate of Compliance

DESCRIPTION

The 782XBXM4L-120A is an electromechanical relay designed for high-performance applications. It operates with a voltage rating of 120VAC and is capable of handling a current of up to 15A. This relay features a double-pole double-throw (DPDT) configuration, providing versatile switching capabilities. With a compact size of 27.9x21x46.5mm, it can be easily mounted on a socket for convenient installation. Whether used in industrial, commercial, or residential settings, this power relay from Magnecraft / Schneider Electric guarantees reliable and efficient performance, making it an ideal choice for various electrical control applications.

Search Keywords: 782XBXM4L120A

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
782XBXM4L-120A
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490075
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Relay Construction:
Non-Latching
AC Coil Voltage:
120 V
DC Coil Voltage:
N/A
Contact Arrangement:
DPDT
Maximum Current Rating:
15 A
Mounting:
Socket
Termination Style:
0.187Quick Connect
Push to Test Button:
Yes
Led Indicator:
Yes
Operating Temperature:
-40 to 70 °C
Coil Resistance:
4.43 KOhm
Life Cycle:
Discontinued

FREQUENTLY ASKED QUESTIONS

Is 782XBXM4L-120A discontinued?

Yes, 782XBXM4L-120A from Schneider Electric-Legacy Relays is discontinued (end-of-life March 2026). Master Electronics is an authorized distributor and may have remaining stock or a recommended replacement for it.

Is 782XBXM4L-120A RoHS compliant?

Yes, 782XBXM4L-120A is RoHS compliant.

What is the lead time for 782XBXM4L-120A?

The standard lead time for 782XBXM4L-120A is approximately 2 days. In-stock quantities ship from Master Electronics.

  This product is discontinued, but still in stock

IN STOCK: 687

Can Ship immediately

Minimum Order Quantity: 10

Multiple: 10

Price (USD)

Qty
Unit Price
10
$29.36
30
$28.72
50
$27.81
100
$27.64
250
$26.94
500
$25.92
1,000 +
$25.78
Supplier's Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides

Accessories

70-782D8-1

Conn Relay Socket SKT 8 POS Screw ST Panel Mount

70-459-1

Socket - General Purpose Relays - for 782 relays - DPDT - 8 pins - output screw clamp term ...
