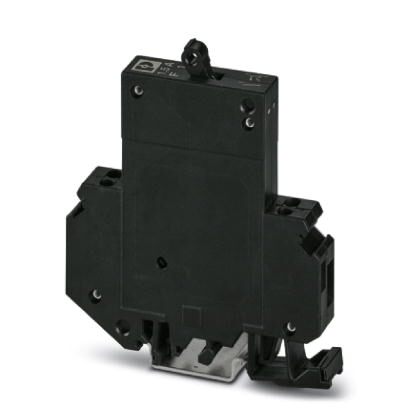

Image is representational - see mfr. specs

0915014

Phoenix Contact

The 0915014 is a 2-position, normal-blow, thermomagnetic circuit breaker designed for DIN rail mounting. ...

Datasheet

RoHS Compliant

End of Life: Final orders must be placed by 07/30/2026

Certificate of Compliance Guarantee

DESCRIPTION

The 0915014 is a 2-position thermomagnetic circuit breaker with a normal-blow characteristic. It operates with a rated current of 3 A and rated voltages of 250 V AC or 65 V DC. This device features one normally open (N/O) and one normally closed (N/C) contact, a rated surge voltage of 2.5 kV, and is housed in a PA66 enclosure with a UL 94 V-2 flammability rating. It provides an insulation resistance greater than 100 MΩ at 500 V DC. Designed with a universal foot for mounting on NS 32 or NS 35 DIN rails, it is suitable for overcurrent protection in various industrial applications.

Product Highlights:

Potential Applications:

Search Keywords: 0915014

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Phoenix Contact

Part No:

0915014

Alias/AKA:

TMC 2 M1 120 3 0A

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8536200020

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
