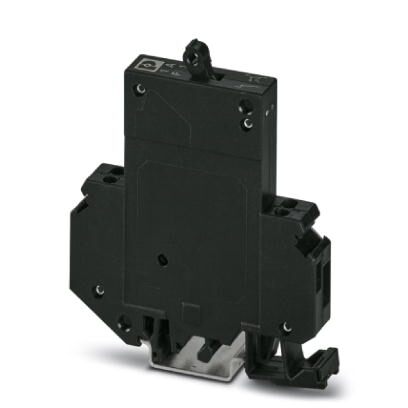

Image is representational - see mfr. specs

0914086

The 0914086 is a single-position thermomagnetic device circuit breaker with a 1.5 A nominal current rating, designed for DIN rail mounting. ...

Datasheet

RoHS Compliant

End of Life: Final orders must be placed by 07/30/2026

Certificate of Compliance Guarantee

DESCRIPTION

The 0914086 is a single-position, thermomagnetic device circuit breaker designed for overcurrent protection. It operates with a nominal current of 1.5 A and a rated voltage of 65 V DC. This automatic device features a screw connection method that accommodates conductor cross-sections from 0.2 mm² to 6 mm² (AWG 24-10). The breaker has a rated surge voltage of 2.5 kV and a short-circuit switching capacity of 2000 A at 65 V DC. With a compact width of 12.5 mm and designed for mounting on a 35 mm DIN rail, it is suitable for space-constrained industrial control cabinets and equipment protection applications.

Product Highlights:

Potential Applications:

Search Keywords: 0914086

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Phoenix Contact

Part No:

0914086

Alias/AKA:

TMC 1 F1 100 1 5A

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8536200020

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
