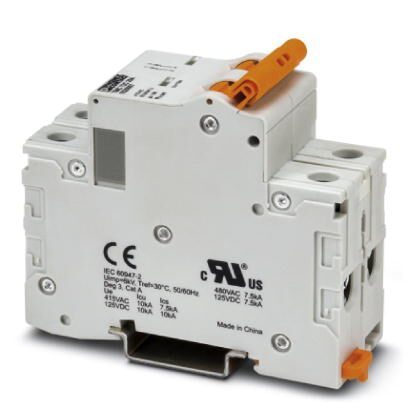

Image is representational - see mfr. specs

1019996

Thermomagnetic device circuit breaker - number of positions: 2 - connection method: Screw - cross section: 1 mm²- 35 mm² - AWG: 18 - 2 - width: 35.3 mm - mounting type: DIN rail: 35 mm - Color: gray ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

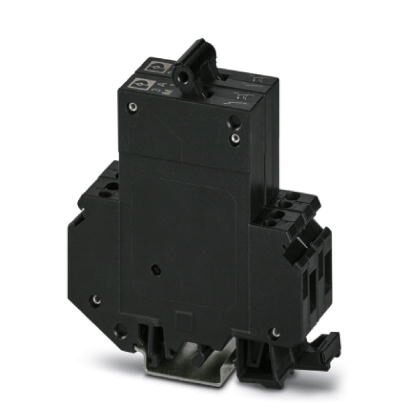

The 0915014 is a 2-position thermomagnetic circuit breaker with a normal-blow characteristic. It operates with a rated current of 3 A and rated voltages of 250 V AC or 65 V DC. This device features one normally open (N/O) and one normally closed (N/C) contact, a rated surge voltage of 2.5 kV, and is housed in a PA66 enclosure with a UL 94 V-2 flammability rating. It provides an insulation resistance greater than 100 MΩ at 500 V DC. Designed with a universal foot for mounting on NS 32 or NS 35 DIN rails, it is suitable for overcurrent protection in various industrial applications.

Product Highlights:

Potential Applications:

Search Keywords: 1019996

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Phoenix Contact

Part No:

1019996

Alias/AKA:

TMC-72C-03A

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8536200040

COO:

ECCN:

EAR99
