BESCHRIJVING

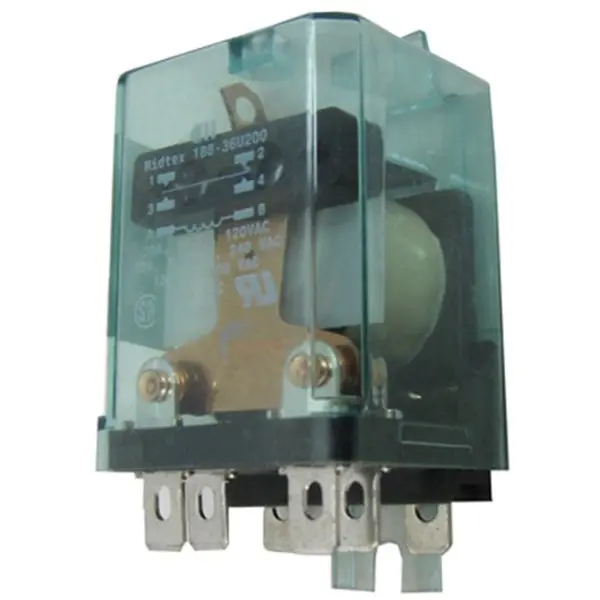

2-1608067-2 is a 30 Amp power relay from the 188 series designed for high-current switching applications. This relay features silver-cadmium oxide contacts with 1/4" (6.25mm) diameter, available in 1 Form X (SPST-NO-DM), 1 Form Y (SPST-NC-DB), or 1 Form Z (SPDT-NC/NO-DB/DM) contact arrangements. The relay supports AC coils from 6-240VAC at 50/60 Hz or DC coils from 6-110VDC, with operating temperature ranges from -45°C to +80°C depending on coil type and enclosure configuration. It offers various mounting options including stud, core, bracket, flange, and PC board mounting, with .250" quick connect/solder terminals or PC terminals. With an expected mechanical life of 10 million operations and initial contact resistance of 50 milliohms, this relay is suitable for industrial control, HVAC systems, and power switching applications.
