HSCDRRN002NDAA5 by honeywell

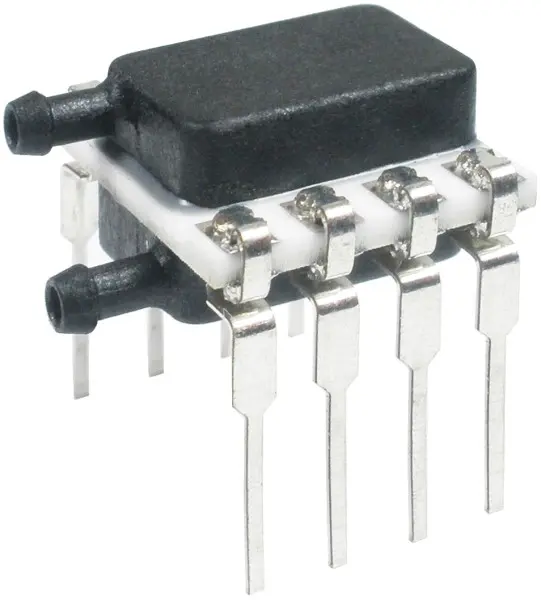

Afbeelding is ter illustratie - zie fabrikantspecificaties
Honeywell Geautoriseerde distributeur

HSCDRRN002NDAA5

TruStability® Board Mount Pressure Sensor - Compensated/Amplified: HSC Series, High Accuracy, ± 1.5% Total Error Band, DIP, Dual Radial Barbed Ports, Same Side, 2 inH₂O Differential, Amplified Analog Output, 10% to 90% Vdd, 5 V Supply, Dry Gases Only, No Special Options ...

Bekijk gegevensblad
RoHS-conform
Verpakking
Accessoires
Offerte voor programmering aanvragen
Conformiteitscertificaat

BESCHRIJVING

A pressure sensor is an electromechanical pressure-sensing device which detects the pressure applied and converts it into an electrical signal. Board Mount Pressure Sensors are designed for various industrial and mechanical applications that perform according to the changing pressure. This differential pressure sensor is used in a variety of medical and industrial applications such as ventilators, anesthesia machines, hospital room air pressure, VAV control, HVAC transmitters and indoor air quality.

HSCDRRN002NDAA5 Board Mount Pressure Sensor from Honeywell delivers long-term stability and offers design flexibility with a variety of package styles. This Honeywell sensor minimizes system calibration needs and maximizes system performance.

Productkenmerken:

  • Propriety Honeywell technology: Combines high sensitivity with high overpressure and burst pressure two performance factors that are difficult to achieve in the same product.
  • Industry-leading long-term stability: Even after long-term use and thermal extremes, these sensors perform substantially better relative to stability than any other pressure sensor available in the industry today.
  • Industry-leading Total Error Band (TEB): Honeywell specifies the most comprehensive, clear, and meaningful measurement
  • Industry-leading accuracy: Reduces software needs to correct system inaccuracies

Zoekwoorden: HSCDRRN002NDAA5

SPECIFICATIES

Productkenmerk
Attribuutwaarde
Selecteer kenmerk
Producten gevonden: 0
Leverancier:
Honeywell
Onderdeelnr.:
HSCDRRN002NDAA5
Meeteenheid:
Per Each
RoHS:
Yes
HTS:
90262000
COO:
CN
ECCN:
EAR99
Standaardverpakking leverancier: Deze informatie wordt verstrekt voor klanten die de voorkeur geven aan het kopen in veelvouden van de standaardverpakkingshoeveelheid van de fabrikant. Minimale bestelhoeveelheden en vereiste bestelveelvouden worden weergegeven bij onze prijs- en beschikbaarheidsinformatie.
50
Mounting:
PCB Through Hole 90 °
Accuracy:
±0.25 %
Device Pressure Type:
Differential
Operating Pressure Range:
2 to o2 inH2O
Media:
Air,Gas
Output Voltage:
0.5 to 4.5 V
Response Time:
1 mS
Typical Operating Supply Voltage:
5 V
Operating Temperature:
-20 to 85 °C
Dimension:
6.16 mm

VEELGESTELDE VRAGEN

Is HSCDRRN002NDAA5 RoHS-conform?

Ja, HSCDRRN002NDAA5 is RoHS-conform.

Wat is de levertijd voor HSCDRRN002NDAA5?

De standaard levertijd voor HSCDRRN002NDAA5 is ongeveer 12 dagen. Voorraadhoeveelheden worden verzonden vanuit Master Electronics.

OP VOORRAAD: 86

Kan direct verzenden

Fabriekslevertijd 12 Weken

Prijs (USD)

Aantal
Prijs per eenheid
1
$54.65
5
$51.32
10
$49.88
25
$47.99
50
$46.56
100
$45.12
250 +
$39.10
Standaardverpakking van leverancier
