M80-5400842

Name: M80-5400842 Harwin
Brand: Harwin
SKU: 55485581
Availability: InStock

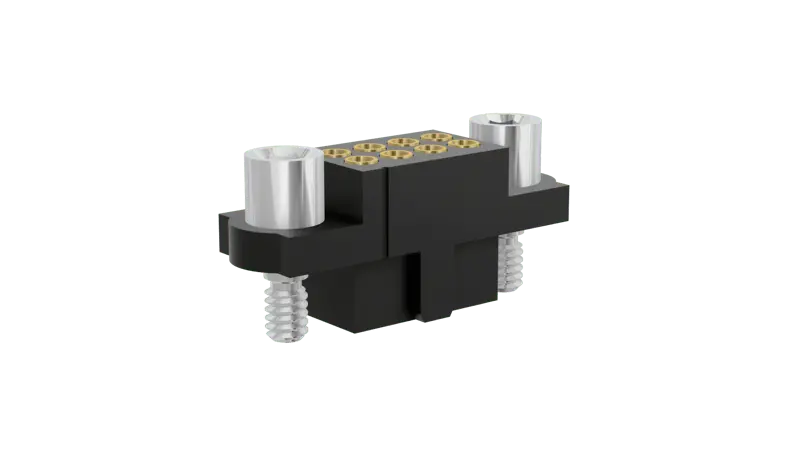

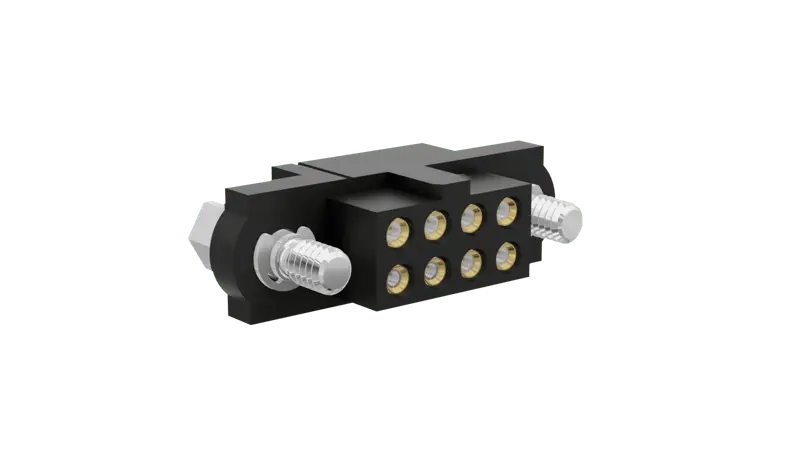

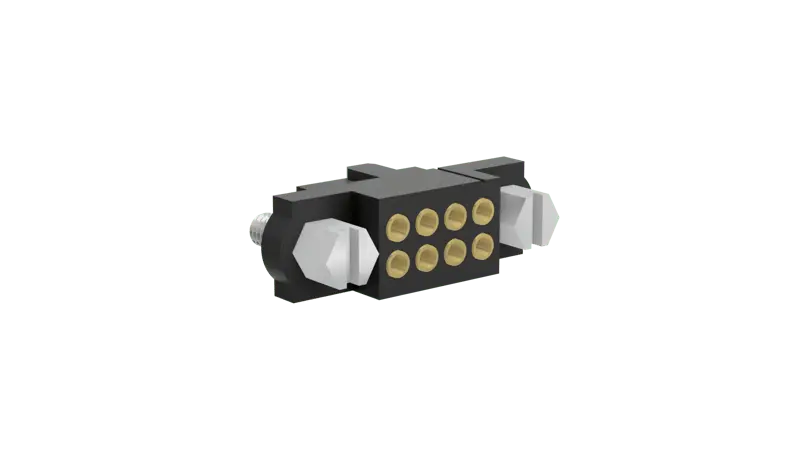

The M80-5400842 is an 8-contact, double-row, 2mm pitch rectangular connector for low-frequency signal applications in high-density electronic equipment. ...

Bekijk gegevensblad

RoHS-conform

BESCHRIJVING

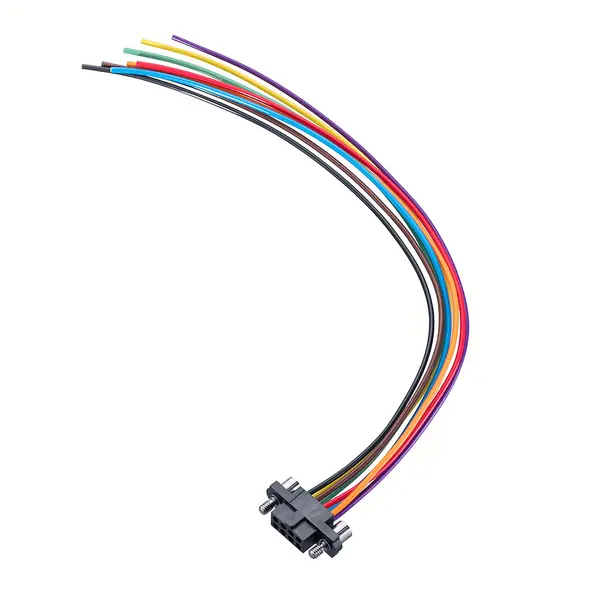

The M80-5400842 is an 8-contact, double-row rectangular connector from the M80 series, designed for reliable board-to-board, cable-to-board, and cable-to-cable interconnections. It features a current rating of up to 3.0A per contact when all contacts are loaded at 25°C and a working voltage of 800V DC or AC Peak. The connector is built for durability, rated for 500 mating cycles, and can operate in a wide temperature range from -55°C to +125°C. With contacts featuring gold on the contact area and 100% tin on the tail, it ensures low initial contact resistance of 20mΩ maximum. Polarized and fully shrouded, this connector is ideal for low-voltage applications requiring high packing density and robustness against vibration and shock.

Productkenmerken:

Mogelijke toepassingen:

Zoekwoorden: M805400842

SPECIFICATIES

Productkenmerk

Attribuutwaarde

Selecteer kenmerk

Producten gevonden: 0

Leverancier:

Harwin

Onderdeelnr.:

M80-5400842

Meeteenheid:

Per Each

RoHS:

Yes

HTS:

8536694040

COO:

ECCN:

EAR99

Standaardverpakking leverancier: Deze informatie wordt verstrekt voor klanten die de voorkeur geven aan het kopen in veelvouden van de standaardverpakkingshoeveelheid van de fabrikant. Minimale bestelhoeveelheden en vereiste bestelveelvouden worden weergegeven bij onze prijs- en beschikbaarheidsinformatie.
