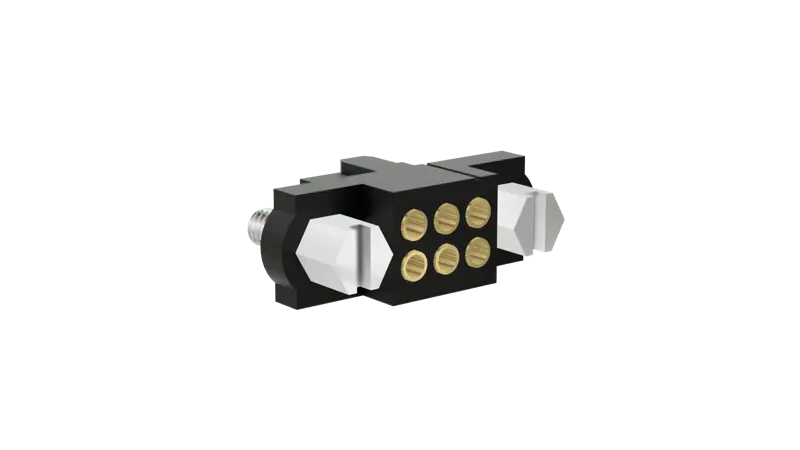

M80-5000642 by harwin
Afbeelding is ter illustratie - zie fabrikantspecificaties
Harwin Geautoriseerde distributeur

M80-5000642

The M80-5000642 is a 6-contact, double-row, 2mm pitch male connector with PC tails and a gold/tin contact finish for high-density electronic equipment. ...

Bekijk gegevensblad Stel een vraag aan het gegevensblad
RoHS-conform
Verpakking
Accessoires
Offerte voor programmering aanvragen
Conformiteitscertificaat

BESCHRIJVING

The M80-5000642 is a 6-contact, double-row male rectangular connector from the M80 Datamate series, designed for board-to-board, cable-to-board, and cable-to-cable interconnections. It features PC tail terminations with gold on the contact area and 100% tin on the tails, ensuring a low initial contact resistance of 20mΩ maximum and a durability of 500 mating cycles. This connector is rated for a working voltage of 800V DC/AC peak and a current of up to 3.0A per contact at 25°C. With an operating temperature range of -55°C to +125°C and high resistance to shock and vibration, it is intended for use as a low-voltage connector in high-packing-density electronic systems requiring robust performance.

Zoekwoorden: M805000642

SPECIFICATIES

Productkenmerk
Attribuutwaarde
Selecteer kenmerk
Producten gevonden: 0
Leverancier:
Harwin
Onderdeelnr.:
M80-5000642
Meeteenheid:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
GB
ECCN:
EAR99
Standaardverpakking leverancier: Deze informatie wordt verstrekt voor klanten die de voorkeur geven aan het kopen in veelvouden van de standaardverpakkingshoeveelheid van de fabrikant. Minimale bestelhoeveelheden en vereiste bestelveelvouden worden weergegeven bij onze prijs- en beschikbaarheidsinformatie.
16

VEELGESTELDE VRAGEN

Is M80-5000642 RoHS-conform?

Ja, M80-5000642 is RoHS-conform.

Wat is de levertijd voor M80-5000642?

De standaard levertijd voor M80-5000642 is ongeveer 14 weken. Voorraadhoeveelheden worden verzonden vanuit Master Electronics.

OP VOORRAAD: 223

Kan direct verzenden

Minimale bestelhoeveelheid: 16

Meerdere: 16

Fabriekslevertijd 14 Weken

Prijs (USD)

Aantal
Prijs per eenheid
16
$8.75
32
$8.57
64
$8.49
112
$7.55
256
$7.53
512
$6.79
1.008 +
$6.48
Standaardverpakking van leverancier
Meld u aan voor speciale prijzen

Tools/3D-modellen

Productgidsen

Accessoires

M80-2060005

Connector Accessory, 0.043in Max Cable Dia, Contact, Beryllium Copper

M80-4000642

Conn Datamate F 6 POS 2mm Solder ST Thru-Hole Tube

M80-4020605

3+3 Pos. Female DIL Vertical SMT Conn. Jackscrews RoHS Compliant: Yes

M80-4210605

3+3 Pos. Female Dil Vertical Throughboard Conn. Jackscrews Rohs Compliant: Yes |Harwin M80 ...

M80-4800605

Conn Datamate F 6 POS 2mm Crimp ST Cable Mount Bulk/Loose

M80-9410605

3+3 POS. FEMALE DIL 22AWG

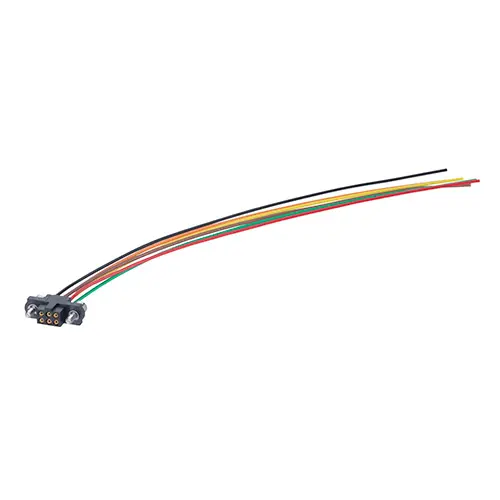

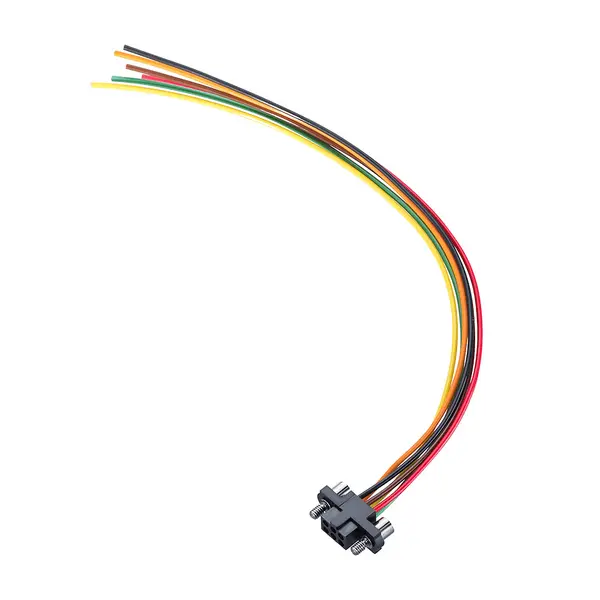

M80-FC20668F2-0150L

3+3 Pos. Female DIL 24AWG Cable Assembly, 150mm, single-end, Jackscrew RoHS Compliant: Yes

M80-4660605

Board Connector, 6 Contact(S), 2 Row(S), Female, 0.079 Inch Pitch, Crimp Terminal, M2X0.4, ...

M80-4130698

3+3 Pos. Female DIL Cable Housing Jackscrews

M80-4170698

Conn Housing Datamate Receptacle 6 POS 2mm ST Cable Mount Bag

M80-4850605

Conn Datamate Receptacle 6 POS 2mm Crimp ST Cable Mount Bulk

M80-4010642

Conn Datamate F 6 POS 2mm Solder ST Thru-Hole Tube

M80-4140698

Wtb Housing Connector, 6Pos, 2Row, 2Mm Rohs Compliant: Yes |Harwin M80-4140698

M80-4200642

3+3 Pos. Female Dil Vertical Throughboard Conn. Jackscrews Rohs Compliant: Yes |Harwin M80 ...

M80-4600605

Conn Datamate F 6 POS 2mm Crimp ST Cable Mount Bulk/Loose

M80-4610605

Conn Datamate F 6 POS 2mm Crimp ST Cable Mount Bulk/Loose

M80-4650605

Headers & Wire Housings 3+3 Way Ext Wall Fm Crimp L/bore W/js

M80-4810605

3+3 Pos. Female Dil 24-28AWG Cable Conn. Kit, Jackscrews Rohs Compliant: Yes

M80-4860605

Headers & Wire Housings 3 + 3 WAY DIL FEMALE HEX SOCKET JACK SCRW

M80-4E10605F2

3+3 POS. FEMALE DIL 28-32A

M80-4T10642F3

3+3 POS. FEMALE DIL VERTIC

M80-9400605

3+3 Pos. Female DIL 24-28AWG Cable Conn. Kit with Hood/Backshell, Jackscrews RoHS Complian ...

M80-FB10668F2-0150L

3+3 Pos. Female T-Contact DIL 22AWG Cable Assembly, 150mm, single-end, Jackscrews RoHS Com ...

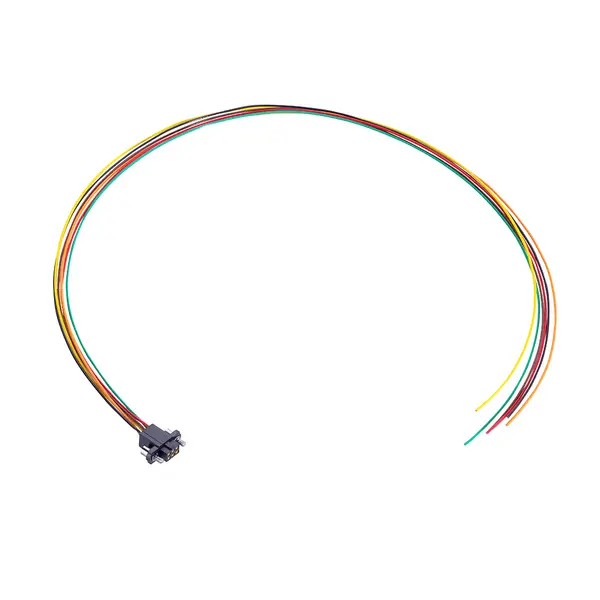

M80-FE20668F2-0450L
