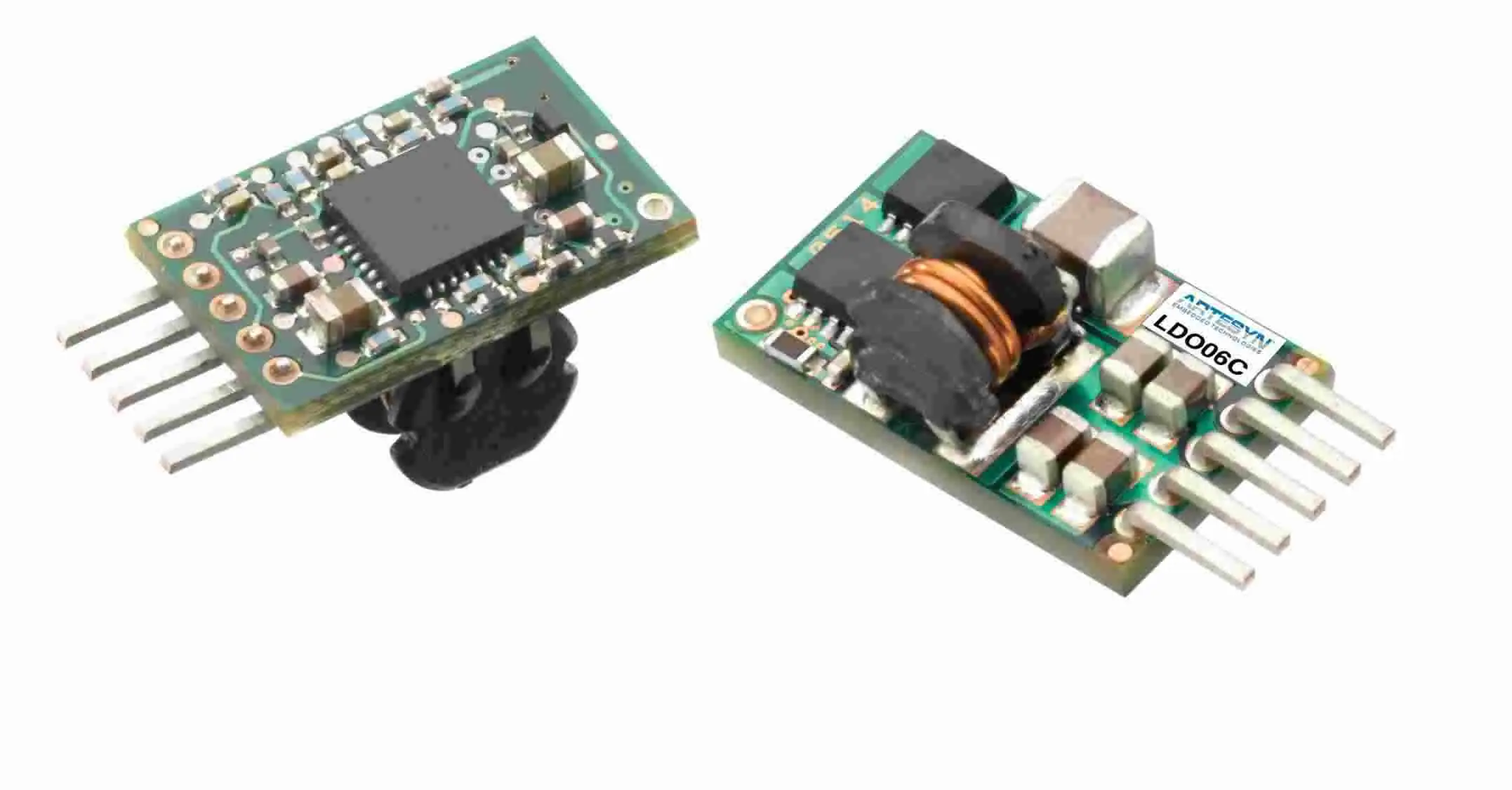

LDO03C-005W05-SJ

Name: LDO03C-005W05-SJ Artesyn Advanced Energy Board Mount
Brand: Artesyn Advanced Energy
SKU: 43003758
Availability: InStock

Non-isolated DC-DC converter with adjustable output voltage (0.59–5.1 V) and 3 A maximum output current for cost- and space-sensitive applications. ...

Bekijk gegevensblad

RoHS-conform

TRAY Verpakking

BESCHRIJVING

The LDO03C-005W05-SJ is a 15-watt non-isolated DC-DC converter from Advanced Energy's Artesyn LDO03C series, designed for cost- and space-sensitive applications requiring wide input voltage accommodation. It features a wide input voltage range of 3–13.8 Vdc and an adjustable output voltage range of 0.59–5.1 Vdc with a maximum output current of 3 A, delivering typical efficiency of 90% at 1.5 MHz switching frequency. The converter includes hiccup-mode short-circuit and overvoltage protection, operates reliably across -40°C to +85°C ambient temperature, and provides excellent transient response with line regulation of ±0.5% and load regulation of ±0.5%. Standard features include remote enable capability and optional power-good indication, making it ideal for semiconductor equipment, industrial, telecommunications, and data center applications where compact size and adjustable output voltage are critical requirements.

Productkenmerken:

Mogelijke toepassingen:

Zoekwoorden: LDO03C005W05SJ

SPECIFICATIES

Productkenmerk

Attribuutwaarde

Selecteer kenmerk

Producten gevonden: 0

Leverancier:

Artesyn / Advanced Energy

Onderdeelnr.:

LDO03C-005W05-SJ

Meeteenheid:

Per Each

RoHS:

Yes

HTS:

8504408500

COO:

ECCN:

EAR99

Standaardverpakking leverancier: Deze informatie wordt verstrekt voor klanten die de voorkeur geven aan het kopen in veelvouden van de standaardverpakkingshoeveelheid van de fabrikant. Minimale bestelhoeveelheden en vereiste bestelveelvouden worden weergegeven bij onze prijs- en beschikbaarheidsinformatie.
