LCM1500U-T

Name: LCM1500U-T Artesyn Advanced Energy Chassis Mount
Brand: Artesyn Advanced Energy
SKU: 58267881
Availability: BackOrder

AC-DC Power Supply - 1500W - 36VDC - Input: 90 to 264VAC - Terminal Block - 2.5 x 5.2 x 10 inches ...

Bekijk gegevensblad

RoHS-conform

BULK Verpakking

BESCHRIJVING

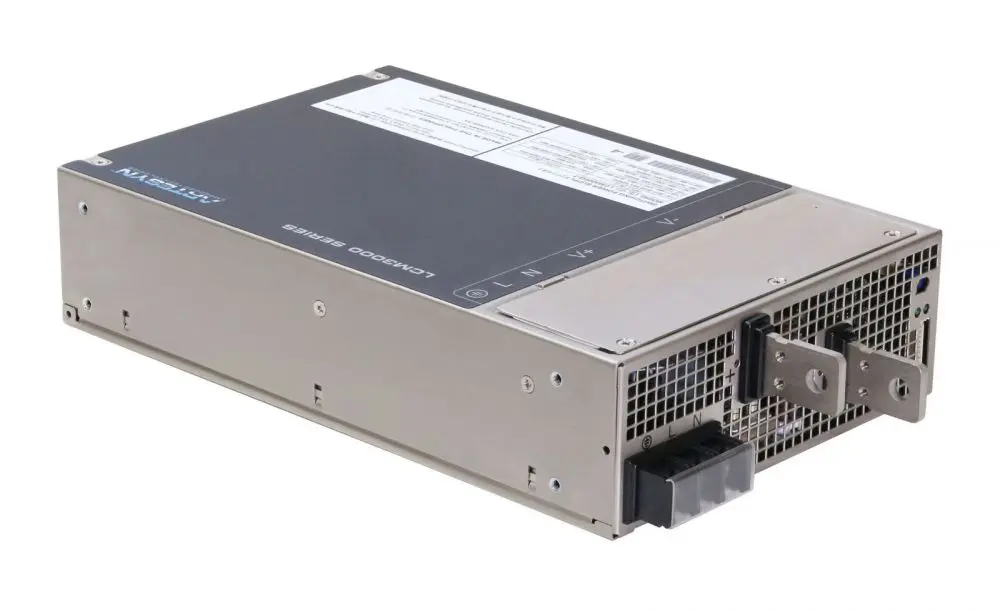

The LCM1500U-T is a 1500 W bulk front-end AC-DC power supply designed for industrial and medical applications, featuring a 36 VDC nominal output with an adjustment range of 32.4 to 39.6 V. It delivers up to 43 A maximum continuous current and achieves greater than 89% efficiency at full load with 230 VAC nominal input. The unit operates over a wide input range of 90 to 264 VAC at 47 to 440 Hz, incorporates variable-speed smart fans controlled by DSP for optimized cooling and extended component life, and maintains robust screw terminal connections with comprehensive industrial and medical safety certifications including UL/cUL, TUV-SuD, and CE marking. Its compact dimensions of 2.5" × 5.2" × 10.0" and operating temperature range of -40°C to +70°C with linear derating make it ideal for embedded power applications requiring high reliability and efficiency in space-constrained environments.

Productkenmerken:

Mogelijke toepassingen:

Zoekwoorden: LCM1500UT

SPECIFICATIES

Productkenmerk

Attribuutwaarde

Selecteer kenmerk

Producten gevonden: 0

Leverancier:

Artesyn / Advanced Energy

Onderdeelnr.:

LCM1500U-T

Meeteenheid:

Per Each

RoHS:

Yes

HTS:

8504409540

COO:

ECCN:

EAR99

Standaardverpakking leverancier: Deze informatie wordt verstrekt voor klanten die de voorkeur geven aan het kopen in veelvouden van de standaardverpakkingshoeveelheid van de fabrikant. Minimale bestelhoeveelheden en vereiste bestelveelvouden worden weergegeven bij onze prijs- en beschikbaarheidsinformatie.
