C01620H00311010

Name: C01620H00311010 Amphenol Tuchel Standard
Brand: Amphenol Tuchel
SKU: 56493669
Availability: InStock

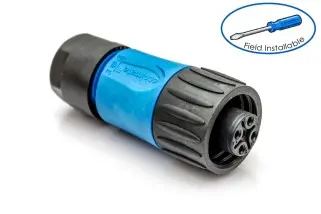

3+PE Male, straight cable connector with strain relief, internal cable clamping and clamping ring. Field installable screw termination. ...

Bekijk gegevensblad

RoHS-conform

BOX Verpakking

Conformiteitscertificaat

BESCHRIJVING

C01620H00311010 is an ecomate® Aquarius™ circular multiway connector designed for industrial applications requiring robust connectivity and environmental protection. The connector features an IP67 rating in mated condition, UL 94 V-0 flammability rating, and supports multiple shell sizes (8 through 18) with various contact configurations ranging from 7.5A to 45A at voltages up to 1000V. It demonstrates excellent fluid resistance to gas, oil, mineral oil, acid bath, and basic bath environments, with an insulation resistance of 5000 megohms and thermal shock capability with no cracking, chipping, or leaking after 20 cycles from -55°C to 125°C. The connector is RoHS compliant and UL ECBT2 approved, making it suitable for Factory Automation, Heavy Equipment, Transportation, and Entertainment/Lighting markets where reliable, sealed connections are essential.

Productkenmerken:

Mogelijke toepassingen:

Zoekwoorden: C01620H00311010

SPECIFICATIES

Productkenmerk

Attribuutwaarde

Selecteer kenmerk

Producten gevonden: 0

Leverancier:

Amphenol Tuchel

Onderdeelnr.:

C01620H00311010

Meeteenheid:

Per Each

RoHS:

Yes

HTS:

8536694020

COO:

ECCN:

EAR99

Standaardverpakking leverancier: Deze informatie wordt verstrekt voor klanten die de voorkeur geven aan het kopen in veelvouden van de standaardverpakkingshoeveelheid van de fabrikant. Minimale bestelhoeveelheden en vereiste bestelveelvouden worden weergegeven bij onze prijs- en beschikbaarheidsinformatie.
