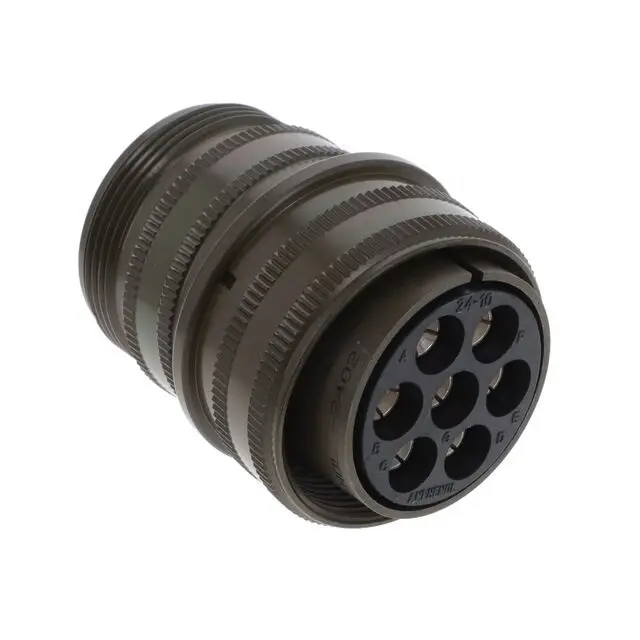

MS3102A24-10P

Name: MS3102A24-10P Amphenol Industrial Operations MIL Spec
Brand: Amphenol Industrial Operations
SKU: 54794704
Availability: InStock

Conn MIL-DTL-5015 Circular PIN 7 POS Solder ST Box Mount 7 Terminal 1 Port ...

Bekijk gegevensblad

Niet RoHS-conform

Conformiteitscertificaat

BESCHRIJVING

The MS3102A24-10P is a MIL-DTL-5015 circular connector plug assembly featuring a 24-size shell with 10 contacts arranged in a specific insert configuration. This connector is designed for reliable electrical connections in military, aerospace, and industrial environments where durability and standardization are critical. The shell accommodates various contact sizes (0, 4, 8, 12, and 16) with crimp rear release termination, supporting wire ranges from 2–0 AWG (34–60 mm²) for size 0 contacts down to 20–16 AWG (0.5–1.4 mm²) for size 16 contacts. The connector features a threaded coupling mechanism with a 1.500–18 UNEF thread class 2A specification and is rated for contact retention of up to 30 lbf (133.4 N) axial load depending on contact size. Common applications include aircraft wiring harnesses, ground support equipment, and military vehicle electrical systems where proven reliability and interchangeability are essential.

Productkenmerken:

Mogelijke toepassingen:

Zoekwoorden: MS3102A2410P

SPECIFICATIES

Productkenmerk

Attribuutwaarde

Selecteer kenmerk

Producten gevonden: 0

Leverancier:

Amphenol Industrial Operations

Onderdeelnr.:

MS3102A24-10P

Alias/ook bekend als:

61-168224-10P

Meeteenheid:

Per Each

RoHS:

HTS:

8536694020

COO:

ECCN:

EAR99

Standaardverpakking leverancier: Deze informatie wordt verstrekt voor klanten die de voorkeur geven aan het kopen in veelvouden van de standaardverpakkingshoeveelheid van de fabrikant. Minimale bestelhoeveelheden en vereiste bestelveelvouden worden weergegeven bij onze prijs- en beschikbaarheidsinformatie.
