57.404.6955.1
A three-tier installation terminal block with screw connections, providing two line feed-throughs and one ground (PE) connection for electrical distribution systems. ...
DESCRIPCIÓN
The 57.404.6955.1 is a three-tier installation terminal block from the selos BIT series, designed for high-density wiring in electrical distribution systems. It features screw connections that accept solid conductors from 0.5 to 6 mm² and fine-stranded conductors from 0.5 to 4 mm² (22-10 AWG). This block is rated for 400V and 26A according to VDE standards, and 300V for UL/CSA applications, all within a compact 6 mm width. The configuration provides two line feed-through connections and one ground (PE) connection that interfaces directly with the DIN rail. It is ideal for use in junction boxes and distribution panels where space is limited and reliable connections are critical.
Palabras clave de búsqueda: 5740469551
ESPECIFICACIONES
FREQUENTLY ASKED QUESTIONS
Is 57.404.6955.1 discontinued?
Yes, 57.404.6955.1 from Wieland Electric is discontinued (end-of-life mayo 2026). Master Electronics is an authorized distributor and may have remaining stock or a recommended replacement for it.
What replaces 57.404.6955.1?

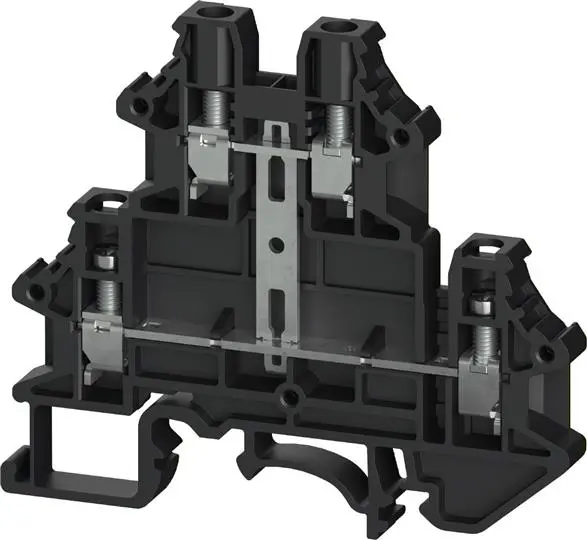

The recommended replacement for 57.404.6955.1 is 5D.S04.6955.1 from Wieland Electric, available from Master Electronics.
Is 57.404.6955.1 RoHS compliant?
Yes, 57.404.6955.1 is RoHS compliant.
What is the lead time for 57.404.6955.1?
The standard lead time for 57.404.6955.1 is approximately 3 days. In-stock quantities ship from Master Electronics.
EN STOCK: 1.010
Puede enviar inmediatamente
Cantidad mínima de pedido: 5
Precio (USD)
Herramientas/Modelos 3D
Guías de productos
Hoja de datos
