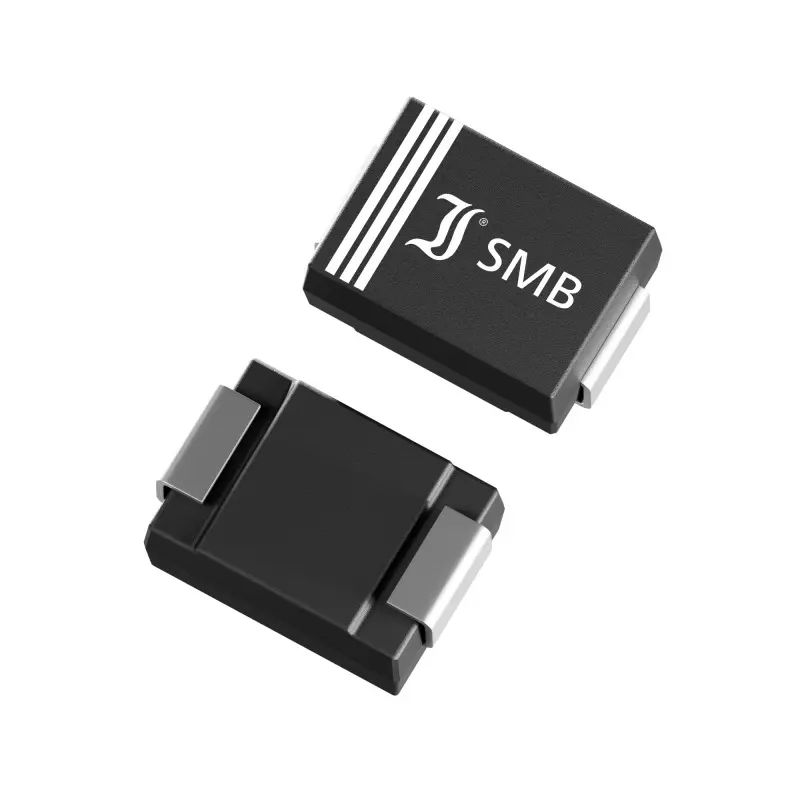

La imagen es representativa - ver especificaciones del fabricante

S1J

Name: S1J
Brand: Diotec Semiconductors
SKU: 55541774
Price: 132 USD
Availability: InStock

Diotec Semiconductors

Diode - SMA - 600V - 1A - 150°C ...

FICHA TÉCNICA

Cumple con RoHS

REEL embalaje

Certificate of Compliance Guarantee

DESCRIPCIÓN

S1J is a standard recovery SMD rectifier diode manufactured by Diotec Semiconductor, designed for 50/60 Hz mains rectification, power supplies, and reverse polarity protection applications. The device features a DC blocking voltage of 480 V, repetitive peak reverse voltage (V_RRM) of 600 V, and surge peak reverse voltage (V_RSM) of 600 V, with a maximum average forward rectified current of 1 A at 100°C junction temperature. Key electrical characteristics include a forward voltage of less than 1.1 V at 1 A, leakage current below 5 µA at 25°C, and a reverse recovery time of typically 1500 ns. The diode is housed in an SMA (DO-214AC) package with a thermal resistance of 75 K/W (junction-to-ambient) and 30 K/W (junction-to-terminal), making it suitable for standard commercial and industrial applications requiring reliable rectification and protection.

Características destacadas del producto:

Aplicaciones potenciales:

Palabras clave de búsqueda: S1J

ESPECIFICACIÓN

Atributo del producto

Valor de atributo

Seleccionar atributo

Productos Encontrados: 0

Proveedor:

Diotec Semiconductors

Nº de pieza:

S1J

Unidad de medida:

Por Each

RoHS:

Yes

HTS:

85411000

COO:

ECCN:

EAR99

Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
