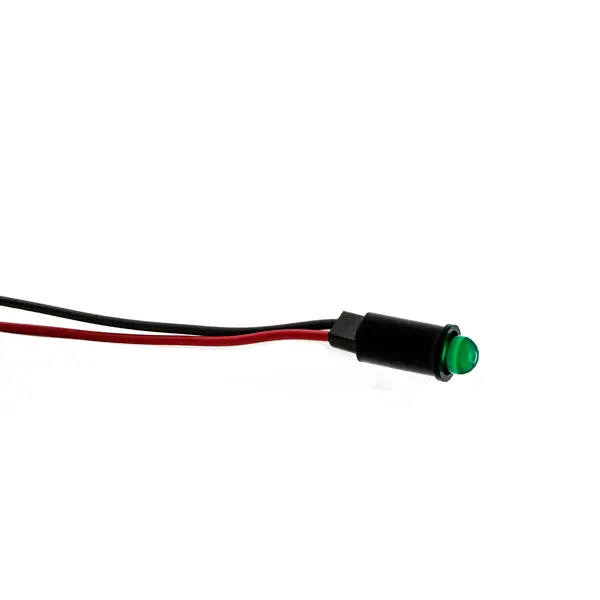

La imagen es representativa - ver especificaciones del fabricante

559-1301-801F

The 559-1301-801F is a green, low-current, diffused LED panel mount indicator designed for snap-in installation into a 0.250-inch mounting hole. ...

FICHA TÉCNICA

RoHS no cumple con RoHS

BAG embalaje

DESCRIPCIÓN

The 559-1301-801F is a snap-in LED panel mount indicator from the 559 series, equipped with a green, low-current, diffused LED. It emits light at a peak wavelength of 565 nm with a typical luminous intensity of 1.8 mcd and a 50-degree viewing angle. The device operates with a typical forward voltage of 1.8V at 1.8 mA, and has a maximum DC forward current rating of 7 mA. This RoHS-compliant indicator features straight terminals for wire wrapping and a black housing to enhance LED contrast, ensuring reliable performance across a wide operating temperature range of -55Â°C to +100Â°C. It is well-suited for applications such as fan tray assemblies, data-center infrastructure, and electronic test instruments.

Características destacadas del producto:

Aplicaciones potenciales:

Palabras clave de búsqueda: 5591301801F

ESPECIFICACIÓN

Atributo del producto

Valor de atributo

Seleccionar atributo

Productos Encontrados: 0

Proveedor:

Dialight

Nº de pieza:

559-1301-801F

Unidad de medida:

Por Each

RoHS:

HTS:

8541402000

COO:

ECCN:

EAR99

Paquete estándar del proveedor: Esta información se proporciona a los clientes que prefieren comprar en múltiplos de la cantidad del paquete estándar del fabricante. Las cantidades mínimas de pedido y los múltiplos de pedido requeridos se presentan con nuestra información de precios y d
