DMC-MD80AW01 by te connectivity / deutsch

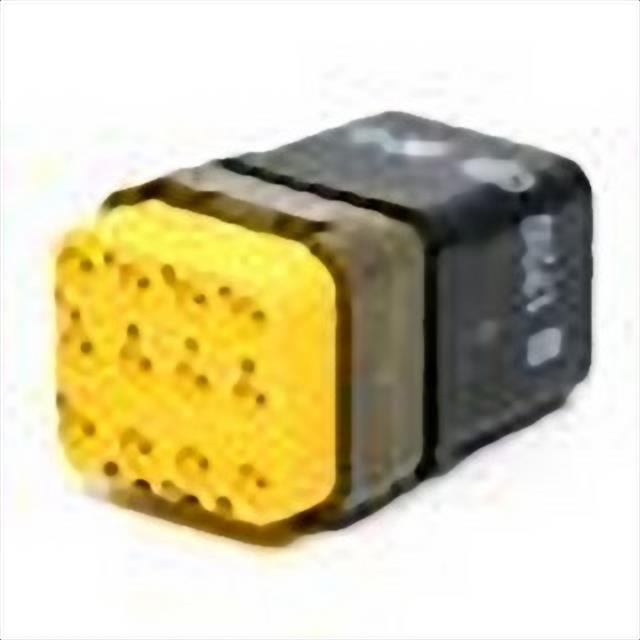

Image is representational - see mfr. specs

DMC-MD80AW01

TE Connectivity / Deutsch

The DMC-MD80AW01 is a single-module, quick-change modular connector from the DEUTSCH DMC-MD series, designed for aircraft in-flight entertainment (IFE) and cabin systems. ...

Datasheet
RoHS Non-Compliant
Pack Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The DMC-MD80AW01 is a single-module, environmentally sealed connector designed for reliable use in commercial aerospace cabin systems. It features a lightweight, nickel-plated composite housing and is built to withstand a wide temperature range of -55°C to +175°C. The connector is rated for 500 mating cycles, provides vibration resistance up to 20 g, and offers EMI shielding with attenuation of 50 dB at 100 MHz. It has an insulation resistance of 5000 MΩ and supports various contact sizes with current ratings up to 46 A for size 8 contacts. Compliant with EN4165, ARINC 809, and BACC65 standards, this modular connector is ideal for flexible and reliable connectivity in applications such as in-flight entertainment systems and avionics.

Search Keywords: DMCMD80AW01

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Deutsch
Part No:
DMC-MD80AW01
Alias/AKA:
ZPF000000000015467
Unit of Measure:
Per Each
RoHS:
No
HTS:
8538908180
COO:
FR
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Pack

IN STOCK: 20

Can Ship immediately

MOQ for out of Stock Qty: 5

Factory Lead-Time 24 Weeks

Price (USD)

Qty
Unit Price
1
$309.65
5
$308.88
10
$190.08
15
$150.48
20 +
$147.47
Log in for special pricing Click for Quote Price Match Request
