1-745496-9 by te connectivity / amp brand

1-745496-9

TE Connectivity / AMP Brand

PLUG ASSY,25P,HDE,MS ...

Datasheet
RoHS Compliant
Tray Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The TE Connectivity / AMP Brand part 1-745496-9 is a high-quality plug assembly designed for heavy-duty applications. With 25 pins, this plug offers reliable connectivity and secure connections. Made with durable materials, including a tough plastic housing, this plug is built to withstand harsh environments. The HDE (Heavy Duty Environment) design provides excellent resistance to shock, vibration, and extreme temperatures, making it suitable for use in challenging industrial and commercial settings. With its MS (Military Standard) certification, this plug meets rigorous quality and performance standards. Ensure optimum performance and durability for your electrical connections with the TE Connectivity / AMP Brand part 1-745496-9 plug assembly.

Product Highlights:

  • Connector
  • Product Series = HDE-20 (IDC)
  • 25 Positions
  • Without Enclosure
  • Housing Gender = Plug

Search Keywords: 17454969

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
1-745496-9
RoHS:
Yes
HTS:
8536698000
COO:
CN
ECCN:
EAR99
Supplier Standard Pack  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
30
Package Type:
Tray
Type:
D-Subminiature
Body Orientation:
Straight
Mounting:
Cable Mount
Gender:
Pin
Termination Method:
IDT
Shell Size:
3
Number of Contacts:
25
Contact Plating:
Gold Over Nickel,Gold Over Palladium Nickel Over Nickel
Operating Temperature:
-55 to 105 °C

IN STOCK: 1,039

Can Ship immediately

Minimum Order: 5

Factory Lead-Time 11 Weeks

Qty
Unit Price
5
$8.44
30
$8.13
60
$8.01
120
$7.89
270
$7.76
510
$7.64
1,020 +
$6.05
Suppliers Standard Package
Log in for special pricing

Tools/3D Models

Product Guides

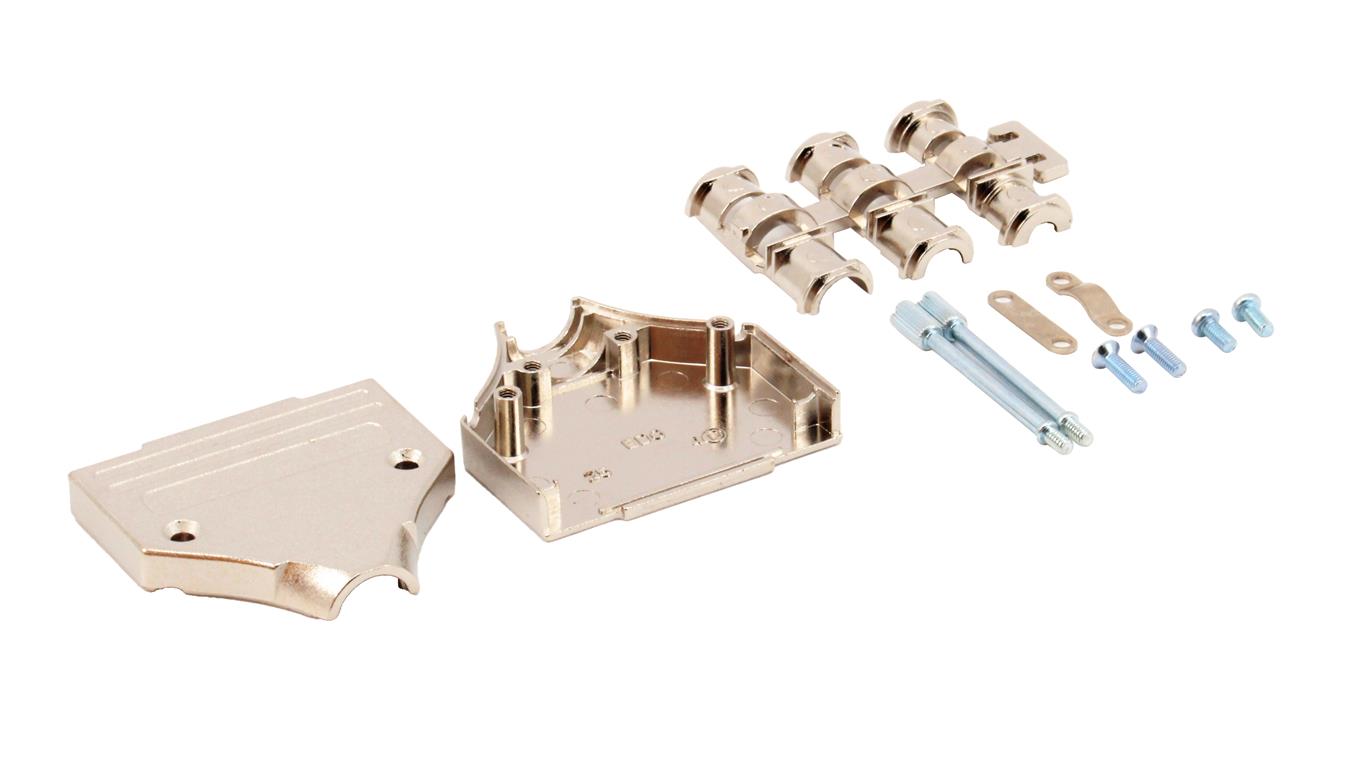

Accessories
