1-338316-2 by te connectivity / amp brand

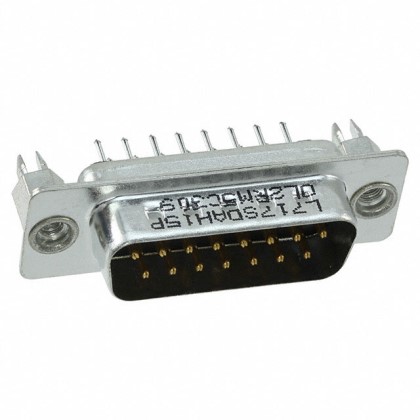

Image is representational - see mfr. specs

1-338316-2

TE Connectivity / AMP Brand

Conn D-Subminiature SKT 37 POS 2.76mm Solder ST Thru-Hole 37 Terminal 1 Port ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Discontinued & Replaced
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 1-338316-2 is a subminiature D-type connector socket with boardlocks designed for solder termination applications. This 37-way connector features M3 inserts for secure mounting and is constructed with a steel tin-plated front shell and black glass-filled polyester housing rated UL 94V-0 for flammability. The connector utilizes phosphor bronze contacts with 0.76 µm gold plating on the contact area, delivering a maximum current rating of 6A and insulation resistance of 5000 MO minimum. With a dielectric strength of 1000V AC and operating temperature range from -55°C to +105°C, this connector is well-suited for industrial control systems, telecommunications equipment, and data acquisition applications requiring reliable high-density interconnections in demanding environments.

Product Highlights:

  • 37 Positions
  • Housing Gender = Receptacle
  • PCB Mount Angle = Vertical
  • Product Series = HDP-20
  • With Mating Connector Lock

Search Keywords: 13383162

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
1-338316-2
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8205595560
COO:
US
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
D-Subminiature
Body Orientation:
Straight
Mounting:
Through Hole
Gender:
SKT
Termination Method:
Solder
Shell Size:
4
Number of Contacts:
37
Contact Plating:
Gold over Nickel
Operating Temperature:
N/A
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 154

Can Ship immediately

Minimum Order Quantity: 10

Price (USD)

Qty
Unit Price
1
$7.546
10
$6.860
50
$6.730
95
$6.610
200
$6.480
400
$6.350
500
$4.900
1,000 +
$3.910
Log in for special pricing Click for Quote Price Match Request
