1-2112891-2 by te connectivity / amp brand

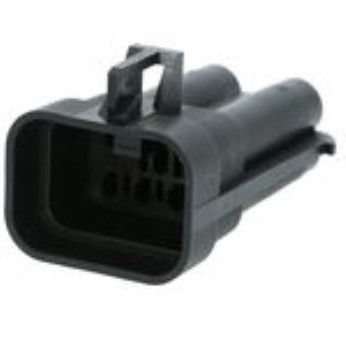

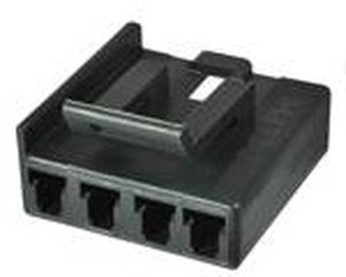

Image is representational - see manufacturer specifications
TE Connectivity / AMP Brand Authorized Distributor

1-2112891-2

36POS,TAB 1.5X0.6,TAB HSG,ASSY ...

View Datasheet
RoHS Compliant
BOX Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The TE Connectivity / AMP Brand part 1-2112891-2 is a 36-position connector assembly with a tab size of 1.5x0.6. It features a tab housing and is designed for easy and reliable connectivity. This versatile connector assembly is suitable for various industrial applications where a strong and secure connection is required.

Search Keywords: 121128912

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
1-2112891-2
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538906000
COO:
HU
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
297
Package Type:
BOX
Connector System:
Wire-to-Wire
Operating Voltage:
36 VDC
Number of Rows:
4
Serviceable:
Yes
Connector Position Assurance Capable:
No
Primary Locking Feature:
On the Terminal
Circuit Application:
Signal
Number of Positions:
36
Connector & Housing Type:
Housing for Male Terminals
Sealable:
No
Terminal Position Assurance:
Yes
Cable Exit Angle:
180°
UL Flammability Rating:
UL 94HB
Centerline (Pitch):
.157 in, 4 mm
Operating Temperature (Max):
100 °C, 105 °C, 110 °C, 120 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 158 °F
Mating Tab Width:
.059 in, 1.5 mm
Product Width:
1.588 in, 40.35 mm
Product Length:
1.756 in, 44.6 mm
Nominal Voltage Architecture:
12 V, 24 V
Row-to-Row Spacing:
.236 in, 6 mm
Operating Temperature Range:
-40 – 120 °C, -40 – 248 °F
Connector Shape:
Rectangular
Strain Relief:
Without
Contact Type:
Tab
Housing Material:
PBT GF
Mating Alignment Type:
Keyed
Mating Alignment:
With
Contact Size:
1.6mm
Connector Height:
1.262 in, 32.05 mm
Connector Mounting Type:
Panel Mount

FREQUENTLY ASKED QUESTIONS

Is 1-2112891-2 RoHS compliant?

Yes, 1-2112891-2 is RoHS compliant.

What is the lead time for 1-2112891-2?

The standard lead time for 1-2112891-2 is approximately 38 days. In-stock quantities ship from Master Electronics.

IN STOCK: 4

Ships today, if you order in

Buy all 4 in-stock or the regular minimum order quantity of 10

On Order: 594   can ship 2/8/27

Stock lot only: 4

Minimum Order Quantity: 10

Factory Lead-Time 38 Weeks

Price (USD)

Qty
Unit Price
1
$3.201
10
$2.910
50
$2.670
297
$2.410
594
$2.130
1,188
$2.030
2,673
$1.760
5,049
$1.520
7,722 +
$1.480
