100147-1 by te connectivity / amp brand

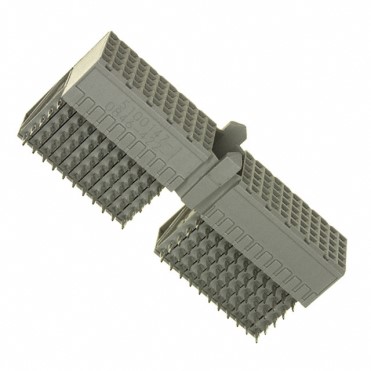

Image is representational - see manufacturer specifications
TE Connectivity / AMP Brand Authorized Distributor

100147-1

Z-PACK/A F-HDR.110P ...

View Datasheet Ask the Datasheet
RoHS Non-Compliant
TUBE Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

100147-1 is a Type A standard right angle female connector designed for the AMP Z-PACK 2mm HM Hard Metric Interconnection System. This 5-row connector features 110 contacts with center guiding and keying facility, constructed with a glass filled polyester housing (gray, UL94 V-0 rated) and phosphor-bronze signal contacts. The contact area features 0.8µm gold over 1.3µm nickel plating, while ACTION PIN contacts have 0.5µm Sn/Pb over 1.3µm nickel. The connector supports daughtercard thickness ranging from 1.4mm to 4.3mm and is end stackable without change of contact pitch. It mates with respective vertical and right angle male connectors and shrouds, making it suitable for backplane and high-density interconnection applications.

Product Highlights:

  • Connector
  • Connector Type = Type A
  • Receptacle
  • Interface Type = 2mm HM
  • Contact Type = ACTION PIN Post, Signal

Search Keywords: 1001471

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
100147-1
Unit of Measure:
Per Each
RoHS:
No
HTS:
8536694040
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
11
Package Type:
TUBE
Type:
Hard Metric
Gender:
RCP
Body Orientation:
Right Angle
Mounting:
Through Hole
Pitch:
2 mm
Number of Contacts:
110
Termination Method:
Solder
Operating Temperature:
-55 to 125 °C

FREQUENTLY ASKED QUESTIONS

Is 100147-1 RoHS compliant?

No, 100147-1 is not RoHS compliant.

What is the lead time for 100147-1?

The standard lead time for 100147-1 is approximately 10 days. In-stock quantities ship from Master Electronics.

  This product is NOT RoHS Compliant.  See Alternatives

IN STOCK: 3,049

Can Ship immediately

MOQ for In Stock Qty: 33

MOQ for out of Stock Qty: 33

Multiple: 11

Factory Lead-Time 10 Weeks

Price (USD)

Qty
Unit Price
33
$24.94
50
$24.87
124
$24.81
248
$13.14
372
$9.24
495 +
$9.06
Log in for special pricing Click for Quote Price Match Request
