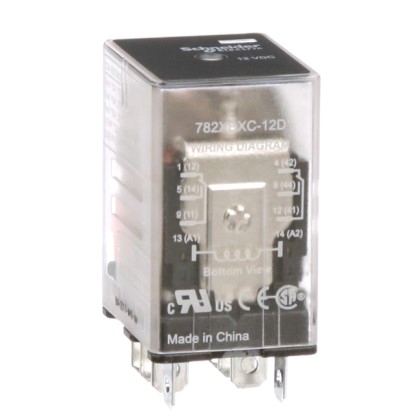

Image is representational - see manufacturer specifications
Schneider Electric-Legacy Relays Authorized Distributor

W78RCSX-7

Electromechanical Relay 12VDC 160Ohm 12ADC/15AAC DPDT (27.9x21)mm Plug-In Power Relay

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Discontinued & Replaced
Certificate of Compliance

DESCRIPTION

Electromechanical Relay 12VDC 160Ohm 12ADC/15AAC DPDT (27.9x21)mm Plug-In Power Relay

Search Keywords: W78RCSX7

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
W78RCSX-7
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410050
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Relay Construction:
Non-Latching
DC Coil Voltage:
12 V
Contact Arrangement:
DPDT
Maximum Current Rating:
10 A
Mounting:
Connector
Termination Style:
Quick Connect
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 70 °C
Coil Resistance:
160 Ohm
Life Cycle:
Discontinued & Replaced

FREQUENTLY ASKED QUESTIONS

Is W78RCSX-7 discontinued?

Yes, W78RCSX-7 from Schneider Electric-Legacy Relays is discontinued. Master Electronics is an authorized distributor and may have remaining stock or a recommended replacement for it.

What replaces W78RCSX-7?

The recommended replacement for W78RCSX-7 is 782XBXC-12D from Schneider Electric-Legacy Relays, available from Master Electronics.

Is W78RCSX-7 RoHS compliant?

Yes, W78RCSX-7 is RoHS compliant.

What is the lead time for W78RCSX-7?

The standard lead time for W78RCSX-7 is approximately 9 weeks. In-stock quantities ship from Master Electronics.

  This product is not in stock and cannot be back-ordered
