1830622 by phoenix contact

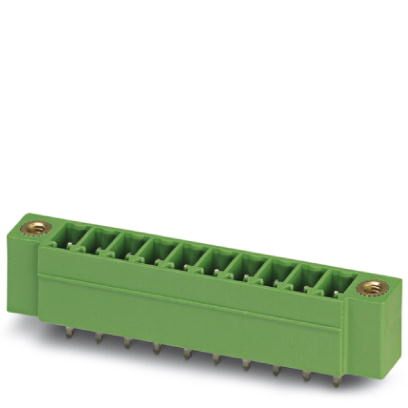

Image is representational - see mfr. specs

1830622

Phoenix Contact

The 1830622 is a 5-position, single-row PCB header with a 3.81 mm pitch, designed for wave soldering and featuring a threaded flange for secure mounting. ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 1830622 is a 5-position PCB header from the MCV 1,5/..-GF product family, providing vertical connection to a printed circuit board. It is rated for a nominal current of 8 A and a voltage of 160 V (III/2), with a compact 3.81 mm pitch. The header is designed for wave soldering and features a linear pin layout with tin-plated contacts and a PBT housing with a V0 flammability rating. A threaded flange allows for screw locking, ensuring superior mechanical stability. As part of the COMBICON MC 1,5 plug-in system, this header offers design flexibility for a wide range of industrial applications.

Search Keywords: 1830622

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1830622
Alias/AKA:
MCV-1-5/-5-GF-3-81
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
250
Type:
Wire to Board
Body Orientation:
Straight
Gender:
HDR
Mounting:
Through Hole
Pitch:
3.81 mm
Number of Contacts:
5
Maximum Voltage Rating:
160 V
Maximum Current Rating:
8 A
Termination Method:
Solder
Operating Temperature:
N/A
  Possible Replacement options available.  See Alternatives

IN STOCK: 491

Ships today, if you order in

Minimum Order Quantity: 5

Factory Lead-Time 10 Weeks

Qty
Unit Price
5
$4.05
50
$3.38
100
$3.33
250
$3.05
500
$2.97
1,000
$2.93
2,500
$2.86
5,000 +
$2.82
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
