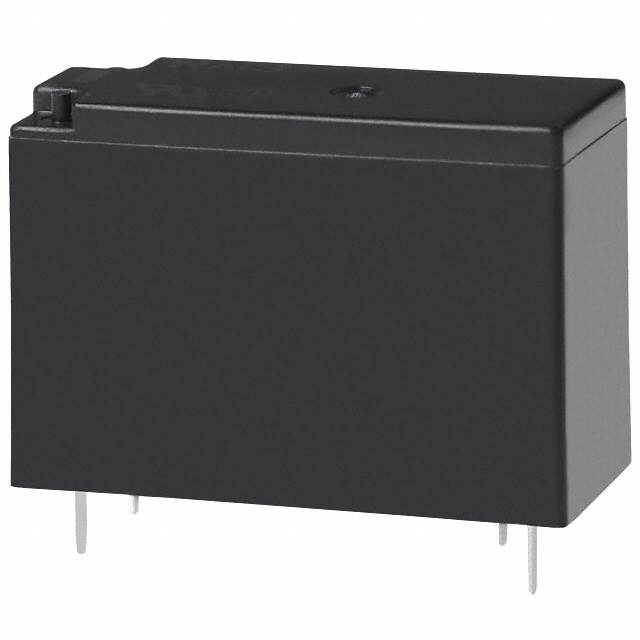

JW1FSN-DC24V by panasonic electronic components
Image is representational - see manufacturer specifications
Panasonic Electronic Components Authorized Distributor

JW1FSN-DC24V

Power Relay 24VDC 10A SPDT(28.6mm 12.8mm 20mm) THT ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The PANASONIC EW/AROMAT JW1FSN-DC24V Power Relay is a reliable and high-quality electronic component designed for various applications. With a voltage rating of 24VDC and a current capacity of 10A, this SPDT (Single Pole Double Throw) relay is capable of handling a wide range of electrical loads.Featuring a compact size of 28.6mm x 12.8mm x 20mm, this through-hole technology (THT) relay is easy to mount on circuit boards and provides stable performance in demanding environments. Its versatile design makes it suitable for use in a variety of industries including automotive, telecommunications, industrial equipment, and more.The PANASONIC EW/AROMAT JW1FSN-DC24V Power Relay is built with premium materials, ensuring long-lasting durability and excellent conductivity. It is the ideal choice for engineers and technicians seeking a reliable relay solution that offers exceptional electrical performance and easy integration into their applications.

Search Keywords: JW1FSNDC24V

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Panasonic Electronic Components
Part No:
JW1FSN-DC24V
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410050
COO:
TH
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
24 V
Contact Arrangement:
SPDT
Mounting:
Through Hole
Termination Style:
PC Pin
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 60 °C
Coil Resistance:
1.1 KOhm

FREQUENTLY ASKED QUESTIONS

What replaces JW1FSN-DC24V?

The recommended replacement for JW1FSN-DC24V is JR1-DC24V from Panasonic Electronic Components, available from Master Electronics.

Is JW1FSN-DC24V RoHS compliant?

Yes, JW1FSN-DC24V is RoHS compliant.

What is the lead time for JW1FSN-DC24V?

The standard lead time for JW1FSN-DC24V is approximately 24 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 0

On Order: 3,900   can ship 11/11/26
On Order: 6,000   can ship 3/11/27

Minimum Order Quantity: 10

Factory Lead-Time 24 Weeks

Price (USD)

Qty
Unit Price
10
$4.05
50
$2.10
100
$2.03
300
$1.88
500
$1.83
1,000
$1.77
2,500
$1.76
5,000 +
$1.63
Supplier's Standard Package
