JW2SN-DC12V by panasonic electronic components

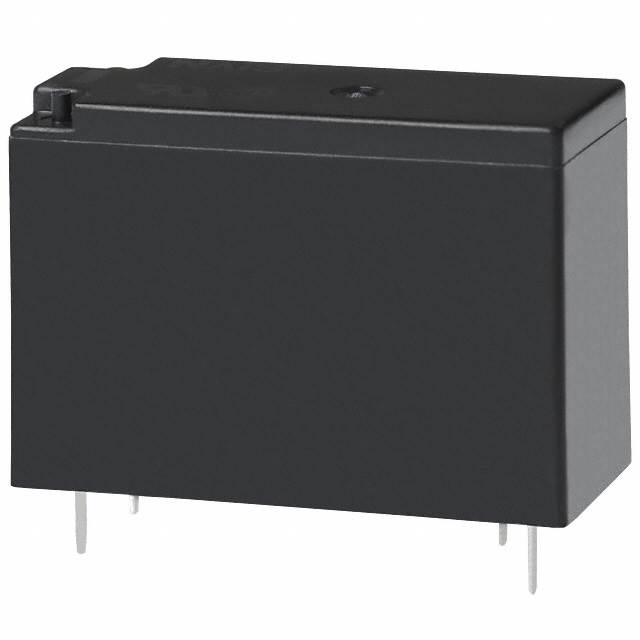

Image is representational - see manufacturer specifications
Panasonic Electronic Components Authorized Distributor

JW2SN-DC12V

General purpose relay - Electromechanical relay – Miniature PCB type power relay - Miniature size with universal terminal footprint - High dielectric with standing for transient protection- Sealed construction for automatic cleaning - DPDT (2 Form C) – Si

View Datasheet Ask the Datasheet
RoHS Non-Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The JW2SN-DC12V is a Miniature Relay with universal terminal footprint. The high dielectric with standing for transient protection of 10000V surge in µs between coil and contacts and 70% of nominal voltage.

Search Keywords: JW2SNDC12V

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Panasonic Electronic Components
Part No:
JW2SN-DC12V
Unit of Measure:
Per Each
RoHS:
No
HTS:
8536410020
COO:
TH
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
12 V
Contact Arrangement:
DPDT
Maximum Current Rating:
5 A
Mounting:
Through Hole
Termination Style:
PC Pin
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 60 °C
Coil Resistance:
270 Ohm

FREQUENTLY ASKED QUESTIONS

Is JW2SN-DC12V RoHS compliant?

No, JW2SN-DC12V is not RoHS compliant.

What is the lead time for JW2SN-DC12V?

The standard lead time for JW2SN-DC12V is approximately 24 days. In-stock quantities ship from Master Electronics.

  This product is NOT RoHS Compliant.  See Alternatives

IN STOCK: 17,321

Ships today, if you order in

Minimum Order Quantity: 100

Multiple: 100

Factory Lead-Time 24 Weeks

Price (USD)

Qty
Unit Price
100
$1.41
300
$1.37
500
$1.35
1,000
$1.34
2,500
$1.33
5,000
$1.32
7,500
$1.31
10,000 +
$1.30
