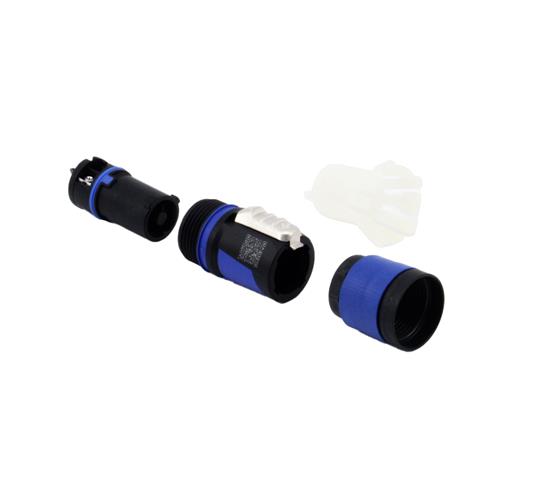

Image is representational - see mfr. specs

NAC3FXXA-W-S

The NAC3FXXA-W-S is a locking, single-phase AC mains cable connector, keyed and color-coded blue for power-in, with screw terminal assembly. ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

The NAC3FXXA-W-S is a single-phase (3-conductor) lockable power connector designed for secure AC mains connections. It is rated for 16 A at 250 V AC in Europe and 20 A at 127 V AC in the USA/Canada, and features Circuit Breaking Capability (CBC) when mated with compatible receptacles. The connector accommodates cable outer diameters from 6 mm to 12 mm and utilizes screw-type terminals for wire sizes from 1.5 to 2.5 mm² (16 to 12 AWG). With its reliable twist-lock system and rugged construction, it serves as a robust replacement for standard appliance couplers in professional audio, lighting, and industrial applications where a safe and stable power connection is essential.

Product Highlights:

Potential Applications:

Search Keywords: NAC3FXXAWS

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

NEUTRIK

Part No:

NAC3FXXA-W-S

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8536694020.00

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
