NAC3FCA

DESCRIPTION

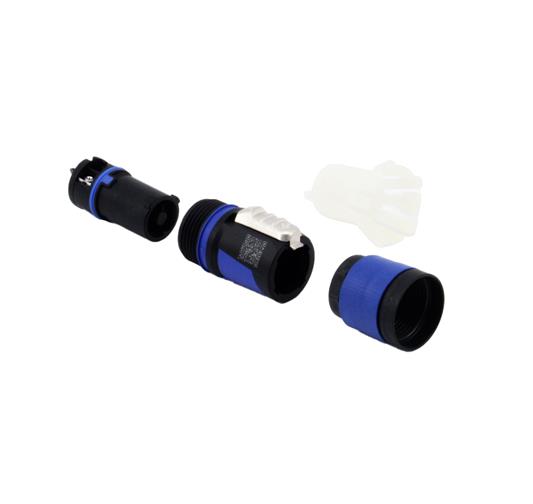

The NAC3FCA is Lockable cable connector, power-in, screw terminals, blue The NAC3FCA has rated voltage of 250 V ac and rated current per contact of 20 A rms and dielectric strength of 4 kVdc / 2.8 kVac. The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!

Product Highlights:

Locking 20 A / 250 V ac appliance coupler
3 contacts for line, neutral and premating safety ground
power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
Fast and easy twist lock latching system
Extremely robust and reliable
Ergonomic design
User friendly latch design for easy handling
Unique Neutrik chuck type strain relief
Branded with unique hologram - guarantees genuine and authentic Neutrik product

Potential Applications:

Search Keywords: NAC3FCA
