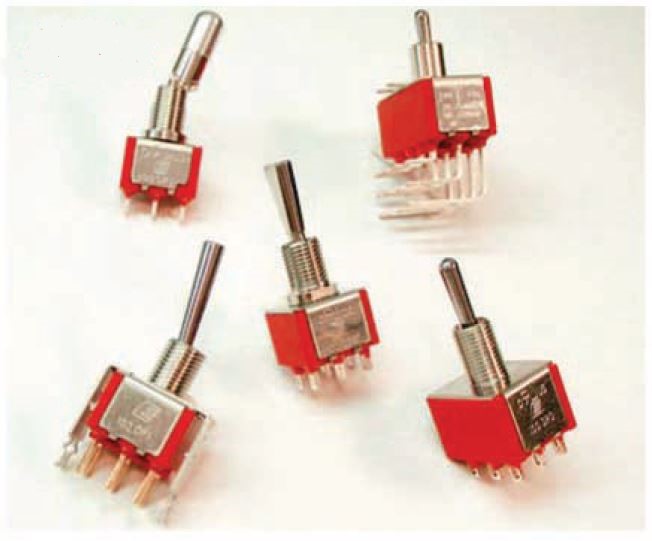

100DP3T1B1M2REH
100DP3T1B1M2REH
In Stock: 368
Minimum Order: 5
VIEW PRODUCT
100DP3T1B1M2RE by e-switch
Image is representational - see manufacturer specifications
E-Switch Authorized Distributor

100DP3T1B1M2RE

Toggle Switch - DPDT - On-Off-On - 20V - 0.4VA - Gold Plated Contacts - PC Mount - 1/4-40UNS x .350" Bushing - No Hardware

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Discontinued & Replaced
Certificate of Compliance

DESCRIPTION

Toggle Switch - DPDT - On-Off-On - 20V - 0.4VA - Gold Plated Contacts - PC Mount - 1/4-40UNS x .350" Bushing - No Hardware

Search Keywords: 100DP3T1B1M2RE

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
E-Switch
Part No:
100DP3T1B1M2RE
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509065
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
108
Pole Throw Configuration:
2P2T (DPDT)
Switch Configuration:
On Off On
Contact Rating @ Voltage:
0.4@20VAC 20VDC A
Actuator Style:
Round Lever
Mounting:
PC Mount with Threads
Thread Size:
1/4-40
Body Orientation:
Straight
Terminal Type:
PC Pins
Dimension:
12.7 x 11.43 x 29.69 mm
Operating Temperature:
-30 to 85 °C
Life Cycle:
Discontinued & Replaced

FREQUENTLY ASKED QUESTIONS

Is 100DP3T1B1M2RE discontinued?

Yes, 100DP3T1B1M2RE from E-Switch is discontinued. Master Electronics is an authorized distributor and may have remaining stock or a recommended replacement for it.

What replaces 100DP3T1B1M2RE?

The recommended replacement for 100DP3T1B1M2RE is 100DP3T1B1M2REH from E-Switch, available from Master Electronics.

Is 100DP3T1B1M2RE RoHS compliant?

Yes, 100DP3T1B1M2RE is RoHS compliant.

What is the lead time for 100DP3T1B1M2RE?

The standard lead time for 100DP3T1B1M2RE is approximately 12 weeks. In-stock quantities ship from Master Electronics.

  This product is not in stock and cannot be back-ordered
