100DP3T1B1M2REH

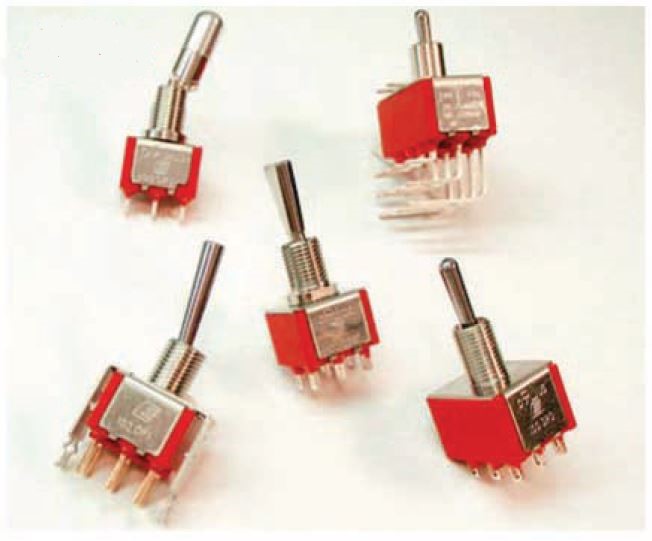

Toggle Switch - DPDT - On-Off-On - 20V - 0.4VA - Gold Plated Contacts - PC Mount - 1/4-40UNS x .350" Bushing - Hardware Incl ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The 100DP3T1B1M2REH is a three-position DPDT rotary switch designed for panel-mount applications with a 1/4-40 UNS-2A threaded shaft. It features gold contact material and an epoxy seal for environmental protection, with a switching function that provides ON-OFF-ON operation across three positions (2-3 and 5-6 connected in position 1, open in position 2, and 2-1 and 5-4 connected in position 3). The switch is rated for 0.4 volt-amps maximum at 20V (AC or DC) with an electric life of 6,000 make-and-break cycles at full load, insulation resistance of 1,000 megaohm minimum, and dielectric strength of 1,000 V RMS at sea level. Operating temperature range is -40°C to +85°C, making it suitable for industrial control panels, instrumentation, and equipment requiring reliable multi-position switching with compact dimensions and standard locking ring mounting hardware.

Search Keywords: 100DP3T1B1M2REH

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
E-Switch
Part No:
100DP3T1B1M2REH
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509065
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
96
Pole Throw Configuration:
2P2T (DPDT)
Switch Configuration:
On Off On
Contact Rating @ Voltage:
0.4@20VAC 20VDC A
Actuator Style:
Round Lever
Mounting:
PC Mount with Threads
Thread Size:
1/4-40
Body Orientation:
Straight
Terminal Type:
PC Pins
Dimension:
12.7 x 11.43 x 29.69 mm
Operating Temperature:
-30 to 85 °C

FREQUENTLY ASKED QUESTIONS

Is 100DP3T1B1M2REH RoHS compliant?

Yes, 100DP3T1B1M2REH is RoHS compliant.

What is the lead time for 100DP3T1B1M2REH?

The standard lead time for 100DP3T1B1M2REH is approximately 12 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 368

Can Ship immediately

MOQ for In Stock Qty: 5

MOQ for out of Stock Qty: 240

Factory Lead-Time 12 Weeks
