09-0174-90-08 by binder-usa

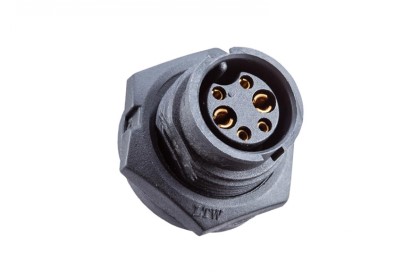

Image is representational - see manufacturer specifications
Binder-USA Authorized Distributor

09-0174-90-08

M16 IP67 Female panel mount connector, Contacts: 8 (08-a), unshielded, THT, IP68, UL, AISG compliant, front fastened ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

09-0174-90-08 is an M16 female panel mount connector designed for industrial control and signal distribution applications. It features 8 contacts (08-a configuration) with a straight socket design, unshielded construction, and front mounting capability. The connector is rated IP68 for dust and water ingress protection, operates across a temperature range of -40°C to +95°C, and supports over 500 mating cycles with a screw locking system. Electrical specifications include a rated voltage of 60 V, rated current of 5.0 A, and insulation resistance of =10¹° O. The housing is zinc die-cast nickel-plated with PBT (UL94 V-0) contact body material and silver-plated bronze contacts, making it suitable for harsh environments in plant engineering, control equipment, and AISG-compliant applications.

Search Keywords: 0901749008

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Binder-USA
Part No:
09-0174-90-08
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694020
COO:
DE
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1

FREQUENTLY ASKED QUESTIONS

Is 09-0174-90-08 RoHS compliant?

Yes, 09-0174-90-08 is RoHS compliant.

What is the lead time for 09-0174-90-08?

The standard lead time for 09-0174-90-08 is approximately 6 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 57

Can Ship immediately

Manufacturer Stock: 488   can ship 12/7/26

On Order: 100   can ship 12/31/26

Minimum Order Quantity: 5

Factory Lead-Time 6 Weeks can ship 1/4/27

Price (USD)

Qty
Unit Price
5
$14.28
25
$12.94
50
$12.36
100
$11.83
250
$11.34
500
$11.04
1,000 +
$10.89
