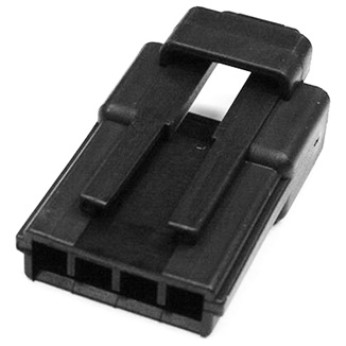

Connector - 4 Contact - Male - M/P 150 Unsealed ...
DESCRIPTION
12092163 is a low-voltage connector terminal designed for automotive applications, featuring multiple configurations across different blade sizes and wire ranges. The terminal exhibits a contact resistance of less than 0.5 mO, contact mating force below 5 N, and contact unmating force below 1 N, ensuring reliable and repeatable connections. It operates at a maximum temperature of 150°C and can withstand vibration up to 30 G with a maximum current rating of 18 A. Available in both sealed and unsealed configurations with tin or alternative precious metal platings, the terminal accommodates wire sizes ranging from 0.08 mm² to 2.5 mm² depending on the specific variant. These terminals are widely used in automotive electrical systems where compact, robust connections with low contact resistance are essential for signal and power distribution.
Search Keywords: 12092163
SPECIFICATIONS
FREQUENTLY ASKED QUESTIONS
Is 12092163 RoHS compliant?
Yes, 12092163 is RoHS compliant.
What is the lead time for 12092163?
The standard lead time for 12092163 is approximately 8 days. In-stock quantities ship from Master Electronics.
IN STOCK: 1
Can Ship immediately
Buy all 1 in-stock or the regular minimum order quantity of 100
On Order:
2,000
can ship 10/29/26
Stock lot only: 1
Minimum Order Quantity: 100
Factory Lead-Time 8 Weeks
