PCSG-48B.30 by thomas - betts
图片仅供参考 - 请查看制造商规格
Thomas & Betts 授权经销商

PCSG-48B.30

PMAFLEX - PCS - Corrugated Conduit - Very Flexible - Heavy-Duty-Grade - Coarse Profile - Conduit Size NW48/NC50 - In Dia 47.1mm - Out Dia 54.5mm - Static Bend Radius 85mm - Material High-Grade Polyamide 12 - Color Black - Length 30m ...

查看数据表
符合 RoHS
包装
附件
请求编程报价
已停产并替换
合规证书

描述

The PCSG-48B.30 is a very flexible, weather-resistant conduit suitable for use in external static and dynamic applications on railway vehicles. Recommended for applications on the roof, between the carriages and on the bogies of railway vehicles. They are distinguished by excellent mechanical characteristics, also under extreme climatic conditions (low temperature and low humidity), excellent flexibility, high fire safety specification, and excellent UV resistance and weathering characteristics, particularly in black. Temperature range:-50°C ... +95°C continuous, +150°C short-term.

搜索关键词: PCSG48B30

规格

产品属性
属性值
选择属性
找到的产品: 0
供应商:
Thomas & Betts
部件编号:
PCSG-48B.30
计量单位:
每 Each
RoHS:
Yes
ECCN:
EAR99
供应商标准包装: 此信息提供给偏好按制造商标准包装数量的倍数购买的客户。最小订购数量和要求的订购倍数会与我们的价格和库存信息一起显示。
1
介质:
N/A
样式:
Flexible
磁芯材料:
Non Metallic
盖板材料:
Polyamide
最大工作压力:
N/A
爆破压力:
N/A
内径:
46.8 mm
外径:
54.4 mm
颜色:
Black
工作温度:
-50 to 95 °C
生命周期:
已停产并替换

常见问题

PCSG-48B.30 是否已停产?

是的,Thomas - Betts 的 PCSG-48B.30 已停产。Master Electronics 是授权分销商,可能仍有剩余库存或可提供推荐的替代产品。

什么产品可以替代 PCSG-48B.30?

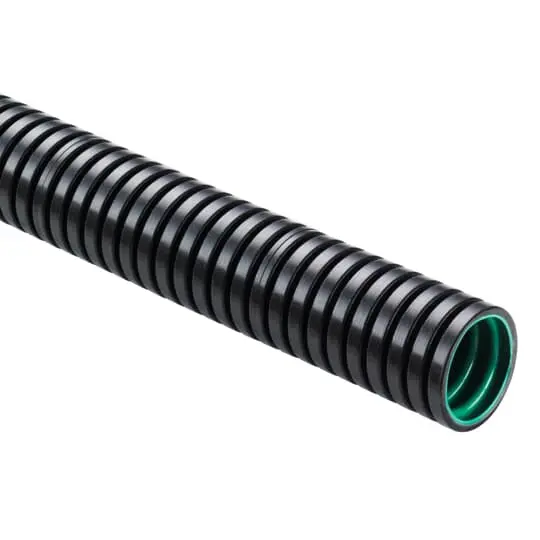

PCSG-48B.30 的推荐替代产品是 Thomas & Betts 的 XPCSG-48BG.30,可从 Master Electronics 购买。

PCSG-48B.30 是否符合 RoHS 标准?

是的,PCSG-48B.30 符合 RoHS 标准。

PCSG-48B.30 的交货期是多少?

PCSG-48B.30 的标准交货期约为 14 周。有库存的数量由 Master Electronics 发货。

  此产品无库存且不能延期订购

工具/3D模型

产品指南
