929938-3
Contact PIN Crimp ST Cable Mount Automotive Loose Piece ...
描述

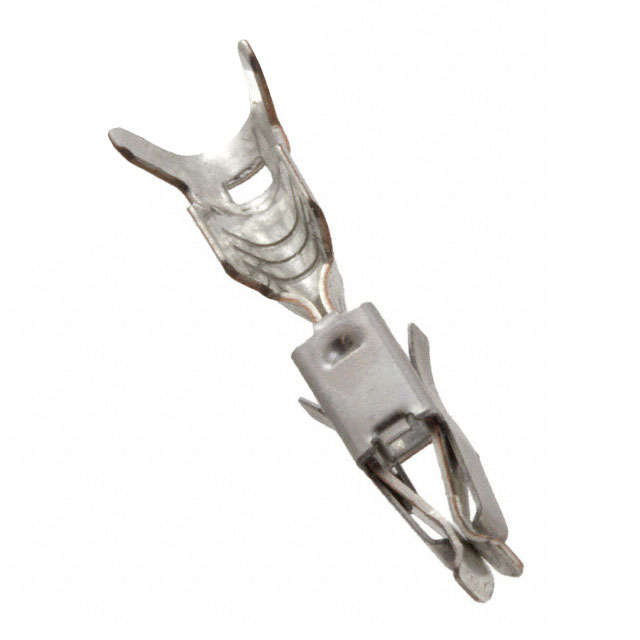

929938-3 is a Junior-Power-Timer contact designed for the AMP Timer connector system, specifically configured for wire sizes in the 1.5–2.5 mm² range. This contact features a single sealing system with secondary locking and a length of 21.0 mm, providing reliable electrical connection and mechanical retention in demanding applications. The contact is available with multiple material and surface finish options including CuFe2 pre-tinned, CuSn4 pre-tinned, CuSn4 with silver plating (min. 0.75 µm on contact body, min. 3.0 µm on contact zone), and CuSn with gold plating on the contact zone. The maximum insulation diameter is 2.2–3.0 mm, accommodating various wire gauges within the specified range. These contacts are commonly used in automotive, industrial, and power distribution applications where robust connections and environmental sealing are essential.
产品亮点:
- Contact
- Contact Type = Junior-Power-Timer
- Receptacle
- Wire Range = 1.50-2.50² [15.5-13.5] mm [AWG]
- Insulation Diameter = 2.21 - 3.00 mm
搜索关键词: 9299383
规格
常见问题
929938-3 是否已停产？
是的，Te Connectivity / Amp Brand 的 929938-3 已停产（生命周期结束时间：二月 2017）。Master Electronics 是授权分销商，可能仍有剩余库存或可提供推荐的替代产品。
929938-3 是否符合 RoHS 标准？
是的，929938-3 符合 RoHS 标准。
929938-3 的交货期是多少？
929938-3 的标准交货期约为 18 周。有库存的数量由 Master Electronics 发货。
有存货: 2,944
可立即发货
库存数量的起订量: 700
缺货数量的起订量: 700
工厂交货期 18 周
数据表
