66360-1
Socket Contact - Multimate III+ Series - 14 to 18 AWG - Brass Contact with 30.0µin (0.76µm) Gold Contact Finish - Crimp Termination. ...
描述
The TE Connectivity / AMP Brand part 66360-1 is a high-quality socket connector designed for various electrical and electronic applications. It features a short description III+ SKT,18-14,30AU<10,LP. This connector is specifically engineered to provide a reliable connection between wires and contacts. With its compact design, it can easily fit into tight spaces, making it suitable for a wide range of applications. The 66360-1 connector offers excellent durability and performance, ensuring a long-lasting and stable connection. Additionally, it has a gold plating, providing better conductivity and resistance against corrosion. This connector is compatible with wires ranging from 18 to 14 AWG and can support a maximum voltage of 10. So, whether you need it for industrial, automotive, or telecommunications projects, the TE Connectivity / AMP Brand part 66360-1 is a reliable and efficient choice.
产品亮点:
- Socket
- Gold (30) over Nickel (30) Contact Mating Area Plating Material
- Wire Range = 0.80-2.00² [18-14] mm [AWG]
- Insulation Diameter = 2.03 - 2.54 mm
- Brass Contact Base Material
搜索关键词: 663601
规格
常见问题
什么产品可以替代 66360-1？

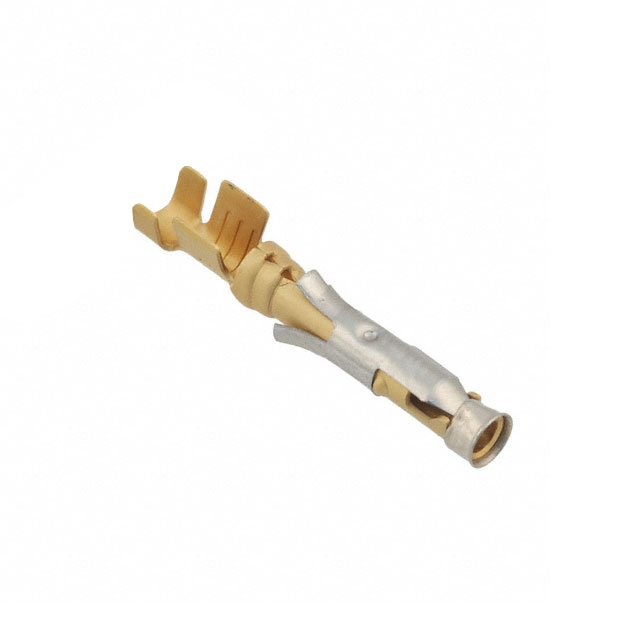

66360-1 的推荐替代产品是 TE Connectivity / AMP Brand 的 66360-4，可从 Master Electronics 购买。
66360-1 是否符合 RoHS 标准？
是的，66360-1 符合 RoHS 标准。
66360-1 的交货期是多少？
66360-1 的标准交货期约为 16 周。有库存的数量由 Master Electronics 发货。
有存货: 4,153
可立即发货
最小订购数量: 25
工厂交货期 16 周
价格 (USD)
3D PDF
产品指南
Product Drawing - SOCKET ASSEMBLY, LOOSE PIECE, TYPE III+
数据表
Product Specification - Type III+ (Size 16) Contacts
Instruction Sheet - Selection of Multimate Pin and Socket Contacts
