208487-1 by te connectivity / amp brand
图片仅供参考 - 请查看制造商规格
TE Connectivity / AMP Brand 授权经销商

208487-1

14 Position Circular Connector Receptacle Housing Panel Mount ...

查看数据表 询问数据表
符合 RoHS
BOX 包装
附件
请求编程报价
合规证书

描述

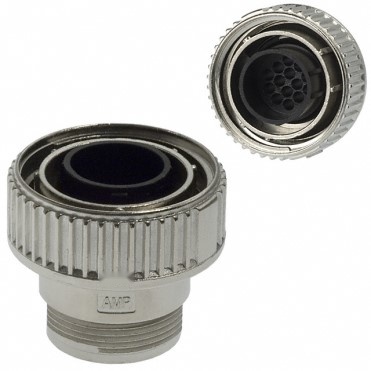

The 208487-1 is a 14-position straight Square Flange Receptacle Assembly with socket contacts, black thermoplastic housing and 22-14 insert arrangement. The reverse sex circular plastic connector has nickel-plated zinc alloy shell, keyed mating alignment and threaded coupling mating retention. This connector is available in a variety of configurations to meet signal, low current and high current requirements. Operating temperature range from -55 to +125°C. This quick connect/disconnect circular connector features polarized housings to prevent mismating with other insert arrangements. Contact protection 15/16-20 UNEF-2A Thread UL94V-0 Flammability rating Applications Industrial

产品亮点:

  • Connector
  • Number of Positions = 14
  • Receptacle
  • For Use With Socket Contacts
  • Not Preloaded

搜索关键词: 2084871

规格

产品属性
属性值
选择属性
找到的产品: 0
供应商:
TE Connectivity / AMP Brand
部件编号:
208487-1
计量单位:
每 Each
RoHS:
Yes
HTS:
8538906000
COO:
MX
ECCN:
EAR99
供应商标准包装: 此信息提供给偏好按制造商标准包装数量的倍数购买的客户。最小订购数量和要求的订购倍数会与我们的价格和库存信息一起显示。
10
封装类型:
BOX

FREQUENTLY ASKED QUESTIONS

Is 208487-1 RoHS compliant?

Yes, 208487-1 is RoHS compliant.

What is the lead time for 208487-1?

The standard lead time for 208487-1 is approximately 7 days. In-stock quantities ship from Master Electronics.

有存货: 230

发货 today, 输入设置值。

工厂交货期 7 周

价格 (USD)

数量
单价
1
$67.22
5
$63.67
10
$55.54
30
$53.83
50
$52.20
100
$49.96
250 +
$49.68
供应商标准包装
登录以获取特别价格 点击询价 价格匹配请求

工具/3D模型

产品指南

产品更改

附件

208486-1

Circular Connector Housing - Plug - For Male Pins - 14 Positions - Shell Size 22 - Contact ...

208486-3

Circular Connector Housing - Plug For Male Pins - 14 Position - Shell Size 22 - Contact Si ...
