1SNK508410R0000 by te connectivity / abb entrelec

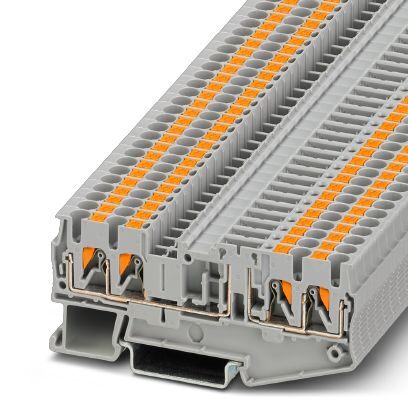

Image is representational - see mfr. specs

1SNK508410R0000

TE Connectivity / ABB Entrelec

ZS4-SF1 ...

产品说明书
符合 RoHS 规定
Box 包装
附件
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

描述

The TE Connectivity/ABB Entrelec part 1SNK508410R0000 is a ZS4-SF1 terminal block designed for secure and efficient electrical connections. This high-quality terminal block is reliable and easy to install, making it the perfect solution for a wide range of applications. With its compact size and durable construction, the 1SNK508410R0000 is an excellent choice for your wiring needs.

Search Keywords: 1SNK508410R0000

规格

Product Attribute
Attribute Value
Select Attribute
Products found: 0
供应商:
TE Connectivity / ABB Entrelec
部件编号:
1SNK508410R0000
计量单位:
Per Each
RoHS:
Yes
HTS:
3926909989
COO:
FR
ECCN:
EAR99
供应商标准包装: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
Box
Modular Terminal Block Product Type:
Screw Clamp Terminal Block
Number of Levels:
1
Wire Stripping Length:
.433 in, 11 mm
Dielectric Test Voltage:
2200 V
Main Circuit Capacity - Twin Ferrule per Screw Clamp:
24 – 14 AWG, .22 – 2.5 mm²
UL Flammability Rating:
UL 94V-0
Current Rating (CSA):
6.3 A
Main Circuit Capacity - 1 Flexible Conductor per Screw Clamp:
24 – 10 AWG, .22 – 4 mm²
Housing Material:
Polyamide
Tool Size:
.138 in, 3.5 mm
Current Rating (IEC):
6.3 A
Rated Cross Section:
10 AWG, 4 mm²
Gauge Type:
A3-B3
Primary Product Color:
Gray & Dark Gray
Current Rating (UL):
10 A
Installation Temperature Range:
-5 – 40 °C, 23 – 104 °F
Voltage Rating (IEC):
630 V
Operating Voltage Rating (UL & CSA) (Max) - Main Circuit:
300 V
IP Rating:
IP20
Product Spacing:
.315 in, 8 mm
Product Weight:
13.3 g, .524 oz
Impulse Withstanding Voltage Rating (IEC):
8000 V
Voltage Rating (CSA):
300 V
Connector Mounting Type:
DIN Rail
Number of Circuits:
1
Main Circuit Capacity - 2 Rigid Conductors per Screw Clamp:
24 – 14 AWG, .2 – 2.5 mm²
Block Configuration:
Fuse
Main Circuit Capacity - 1 Rigid Conductor per Screw Clamp:
24 – 10 AWG, .2 – 4 mm²
Number of Positions:
2
DIN Rail Mounting Type:
TH35-15 , TH35-7.5
Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp:
24 – 12 AWG, .22 – 4 mm²
Product Length:
1.8 in, 45.6 mm
Product Height:
59.7 mm
Product Depth:
45.6 mm
Operating Temperature Range:
-55 – 110 °C, -67 – 230 °F
Storage Temperature Range:
-55 – 110 °C, -67 – 230 °F

有存货: 290

可立即发货

Minimum Order Quantity: 50

Multiple: 50

工厂交货期 2 周

数量
Unit Price
50
$3.25
100
$3.18
250
$3.12
500
$3.09
1,000 +
$3.06
