219BBXP-48VDC by struthers-dunn

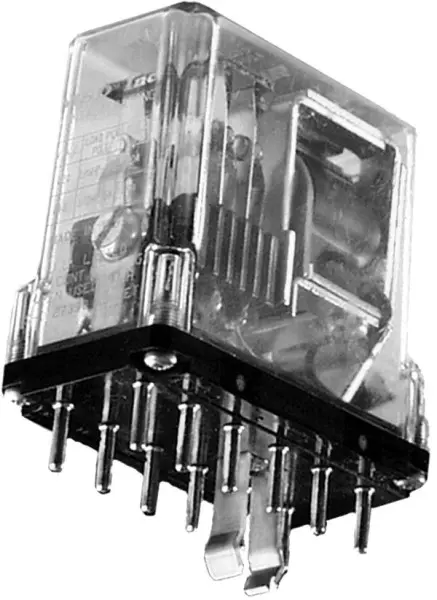

Image is representational - see mfr. specs

219BBXP-48VDC

Struthers-Dunn

The 219BBXP-48VDC is a 10 Amp industrial relay featuring a 2 Pole Normally Open and DPDT contact arrangement with a 48VDC coil. ...

产品说明书
符合 RoHS 规定
包装
附件
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

描述

The 219BBXP-48VDC is a rugged industrial relay from the 219 series, configured with a 48VDC coil. It features a versatile contact arrangement of 2 Pole Normally Open (NO) and Double Pole Double Throw (DPDT) with silver alloy-gold diffused contacts. The contacts are rated for 10 Amps at 120VAC or 28VDC resistive loads. Housed in a clear polycarbonate enclosure, this DC model is designed to operate in temperatures ranging from -20°C to 70°C. With a high mechanical life of 10 million cycles, it is a proven and reliable choice for industrial applications where long service life and minimal downtime are critical.

Search Keywords: 219BBXP48VDC

规格

Product Attribute
Attribute Value
Select Attribute
Products found: 0
供应商:
Struthers-Dunn
部件编号:
219BBXP-48VDC
Alias/AKA:
219BBXP-48D
计量单位:
Per Each
RoHS:
Yes
HTS:
8536410050
COO:
TW
ECCN:
EAR99
供应商标准包装: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
48 V
Contact Arrangement:
DPST-NO,DPDT
Maximum Current Rating:
10 A
Mounting:
Connector
Termination Style:
PC Pin
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-20 to 70 °C
Coil Resistance:
N/A

有存货: 0

已订购: 15   可以发货 7/30/26

工厂交货期 9 周

PRICE (USD)

数量
Unit Price
1
$551.79
3
$522.75
5 +
$494.63
Log in for special pricing Click for Quote Price Match Request
