描述

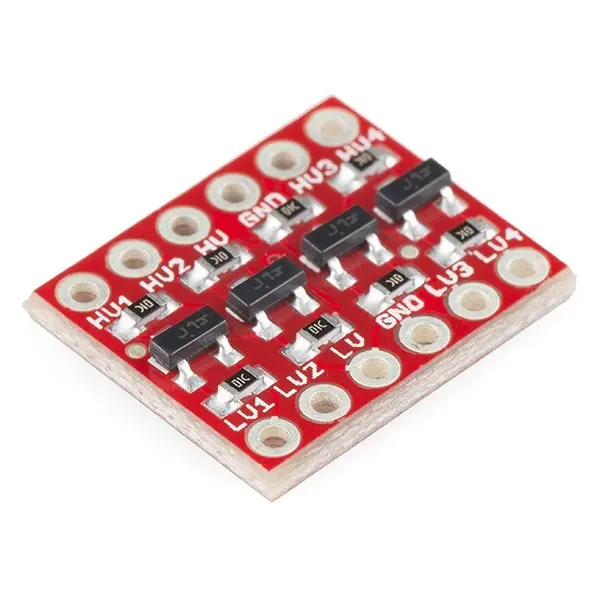

If you\'ve ever tried to connect a 3.3V device to a 5V system, you know what a challenge it can be. The SparkFun bi-directional logic level converter is a small device that safely steps down 5V signals to 3.3V AND steps up 3.3V to 5V at the same time. This level converter also works with 2.8V and 1.8V devices. What really separates this Logic level converter from our previous versions is that you can successfully set your high and low voltages and step up and down between them safely on the same channel. Each level converter has the capability of converting 4 pins on the high side to 4 pins on the low side with two inputs and two outputs provided for each side. The level converter is very easy to use. The board needs to be powered from the two voltages sources (high voltage and low voltage) that your system is using. High voltage (5V for example) to the \'HV\' pin, low voltage (3.3V for example) to \'LV\', and ground from the system to the \'GND\' pin. ->
搜索关键词: BOB12009
规格
常见问题
BOB-12009 是否符合 RoHS 标准？
是的，BOB-12009 符合 RoHS 标准。
BOB-12009 的交货期是多少？
BOB-12009 的标准交货期约为 2 周。有库存的数量由 Master Electronics 发货。
有存货: 377
可立即发货
最小订购数量: 5
工厂交货期 2 周
