NGB425S12C
AC/DC Power Supply Single-OUT 12V 19.5(Conduction)A/19.5(Convection)A/30(Forced Air)A 365W ...
描述

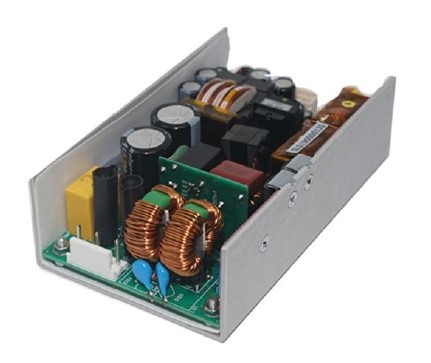

NGB425S12C is a 425W single output AC-DC power supply from the NGB425 family, providing a nominal 12V output with up to 30.0A output current with forced air cooling and 365W output power. It features a universal 85-264VAC input range, greater than 90% typical efficiency, and meets IEC/UL/EN60601-1 3rd Edition and IEC/UL/EN62368-1 safety standards for medical and industrial applications. The unit operates over a -20°C to +80°C temperature range, offers 2 MOPP isolation (4500VAC input-to-output), and has less than 100µA patient leakage current. With compact dimensions of 3"W x 5"L x 1.5"H and a weight of 490g, this power supply is suitable for medical equipment, industrial systems, and applications requiring Class B emissions compliance.
搜索关键词: NGB425S12C
规格
常见问题
NGB425S12C 是否符合 RoHS 标准？
是的，NGB425S12C 符合 RoHS 标准。
NGB425S12C 的交货期是多少？
NGB425S12C 的标准交货期约为 18 周。有库存的数量由 Master Electronics 发货。
数据表
