W199ABX-14 by schneider electric-legacy relays

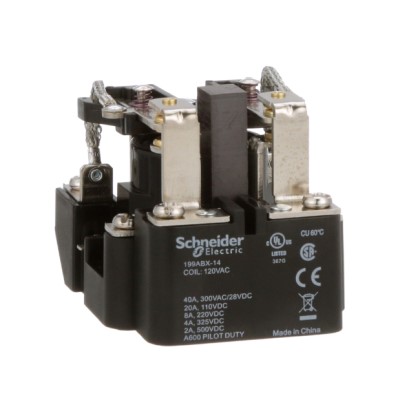

Image is representational - see mfr. specs

W199ABX-14

Schneider Electric-Legacy Relays

Electromechanical Relay 120VAC 290Ohm 40A DPDT (63.5x79.2x58.67)mm Power Relay ...

产品说明书
符合 RoHS 规定
包装
附件
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

描述

The Magnecraft / Schneider Electric W199ABX-14 Electromechanical Relay is a high-quality power relay designed for efficient and reliable electrical switching applications. With a voltage rating of 120VAC and a resistance of 290 Ohms, this DPDT (double-pole double-throw) relay can handle a maximum current of 40A. Featuring a compact size of 63.5x79.2x58.67mm, this power relay is perfect for space-constrained installations. It is built to withstand demanding environments and offers excellent durability and performance. The Magnecraft / Schneider Electric W199ABX-14 relay is an essential component for various industrial and residential applications, including motor controls, lighting systems, HVAC systems, and much more. Trust this reliable and versatile relay for all your electrical switching needs.

Search Keywords: W199ABX14

规格

Product Attribute
Attribute Value
Select Attribute
Products found: 0
供应商:
Schneider Electric-Legacy Relays
部件编号:
W199ABX-14
Alias/AKA:
199ABX-14
计量单位:
Per Each
RoHS:
Yes
HTS:
8536410050
COO:
CN
ECCN:
EAR99
供应商标准包装: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Relay Construction:
Non-Latching
AC Coil Voltage:
120 V
DC Coil Voltage:
N/A
Contact Arrangement:
DPDT
Maximum Current Rating:
40 A
Mounting:
N/A
Termination Style:
Screw Terminal
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 55 °C

有存货: 0

已订购: 10   可以发货 6/15/26
已订购: 150   可以发货 7/20/26

工厂交货期 16 周

数量
Unit Price
1
$62.21
5
$61.60
10
$57.03
30
$53.59
50
$50.44
100
$48.24
250 +
$48.00
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Older Equivalent
199ABX-14
199ABX-14
VIEW PRODUCT

Tools/3D Models

产品指南

附件

50-1289-1

Enclosure Metal Universal Mount
