3209578

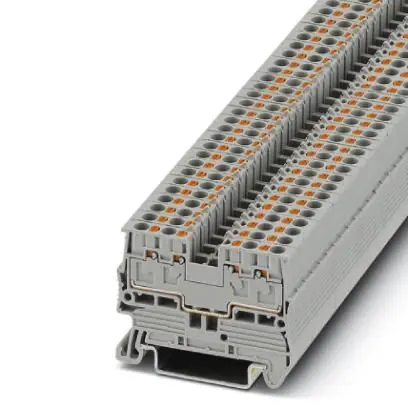

Phoenix ContactFeed-through terminal block - nom. voltage: 800 V - nominal current: 24 A - connection method: Push-in connection - number of connections: 4 - cross section: 0.14 mm² - 4 mm² - AWG: 26 - 12 - width: 5.2 mm - height: 35.3 mm - color: gray - mounting type: NS 35/7,5 - NS 35/15 ...
描述
Phoenix Contact Push-In Technology DIN Rail Terminal Blocks Push-In technology allows wires to be connected easier and faster than ever before. Developed by Phoenix Contact, users can quickly connect ferruled wires by directly pushing them into the terminal, without the use of tools. Stranded wires can also be connected by depressing the orange actuator, and inserting the conductor. The wires are retained with a stainless steel leg spring which tightens under tension. This allows for the rapid connection of many wires while still keeping very high pullout forces. Type Feed Through Number of Positions 4 Number of Levels 1 Terminal - Width 5.2mm Termination Style Push In, Spring Current - IEC 24A Voltage - IEC 800V Current - UL 20A Voltage - UL 600V Wire Gauge or Range - AWG 12-26 AWG Wire Gauge or Range - mm² 0.14-4mm²
Search Keywords: 3209578
规格
有存货: 7,904
可立即发货
Minimum Order Quantity: 10
工厂交货期 3 周
Tools/3D Models
产品指南
产品说明书
Product Changes
PCN - 15-Sep-2018 - CHANGE OF HOUSING DESIGN FOR PT TERMINAL BLOCKS
