2903368 by phoenix contact

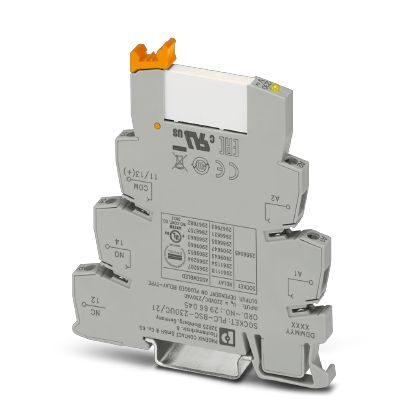

图片仅供参考 - 请查看制造商规格
Phoenix Contact 授权经销商

2903368

Pre-assembled relay module with push-in connection - consisting of: relay base with ejector and multi-layer gold contact relay. Contact type: 1 PDT. Input voltage: 24 V DC ...

查看数据表 询问数据表
符合 RoHS
包装
附件
请求编程报价
合规证书

描述

The PHOENIX CONTACT part 2903368 is a pre-assembled relay module with a push-in connection. It includes a relay base with an ejector and a multi-layer gold contact relay, ensuring reliable and efficient performance. This module features a 1 PDT contact type, meaning it has one normally open and one normally closed contact. It operates on an input voltage of 24 V DC, making it suitable for a wide range of industrial applications. With its easy-to-use push-in connection, this relay module simplifies installation and maintenance processes.

搜索关键词: 2903368

规格

产品属性
属性值
选择属性
找到的产品: 0
供应商:
Phoenix Contact
部件编号:
2903368
计量单位:
每 Each
RoHS:
Yes
HTS:
8536490050
COO:
CN
ECCN:
EAR99
供应商标准包装: 此信息提供给偏好按制造商标准包装数量的倍数购买的客户。最小订购数量和要求的订购倍数会与我们的价格和库存信息一起显示。
10
继电器结构:
N/A
AC线圈电压:
N/A
直流线圈电压:
24 V
触点排列:
SPDT
最大电流额定值:
0.05 A
安装方式:
DIN Rail
工作温度:
-40 to 60 °C
尺寸:
6.2 x 78 x 93 mm
端接方式:
N/A
线圈电流:
9 mA
触点形式:
1 Form C

常见问题

2903368 是否符合 RoHS 标准？

是的，2903368 符合 RoHS 标准。

2903368 的交货期是多少？

2903368 的标准交货期约为 10 周。有库存的数量由 Master Electronics 发货。

有存货: 0

已订购: 100   可以发货 10/19/26

工厂交货期 10 周

价格 (USD)

数量
单价
1
$14.11
10 +
$13.40
供应商标准包装
登录以获取特别价格

工具/3D模型

产品指南

产品更改

附件

FBS-4-6

Plug-in bridge - pitch: 6.2 mm - width: 23.1 mm - number of positions: 4 - color: red

FBS-5-6-GY

Plug-in bridge - pitch: 6.2 mm - width: 29.3 mm - number of positions: 5 - color: gray

FBS-10-6

Plug-in bridge - pitch: 6.2 mm - width: 60.3 mm - number of positions: 10 - color: red

CLIPFIX-35

Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail - with marking option ...

FBS-3-6-GY

Plug-in bridge - pitch: 6.2 mm - width: 16.9 mm - number of positions: 3 - color: gray

FBS-2-6

Plug-in bridge - pitch: 6.2 mm - width: 10.7 mm - number of positions: 2 - color: red

MPS-IH-RD

Insulating sleeve - color: red

MPS-IH-BU

Insulating sleeve - color: blue

MPS-IH-BK

Insulating sleeve - color: black

MPS-MT

Test plugs - with solder connection up to 1 mm² conductor cross section - color: gray

FBS-50-6-BU

Plug-in bridge - pitch: 6.2 mm - width: 308.3 mm - number of positions: 50 - color: blue

FBS-50-6

Plug-in bridge - pitch: 6.2 mm - width: 308.3 mm - number of positions: 50 - color: red

FBS-20-6

Plug-in bridge - pitch: 6.2 mm - width: 122.3 mm - number of positions: 20 - color: red

FBS-20-6-BU

Plug-in bridge - pitch: 6.2 mm - width: 122.3 mm - number of positions: 20 - color: blue

FBS-10-6-BU

Plug-in bridge - pitch: 6.2 mm - width: 60.3 mm - number of positions: 10 - color: blue

FBS-5-6-BU

Plug-in bridge - pitch: 6.2 mm - width: 29.3 mm - number of positions: 5 - color: blue

FBS-4-6-GY

Plug-in bridge - pitch: 6.2 mm - width: 23.1 mm - number of positions: 4 - color: gray

FBS-4-6-BU

Plug-in bridge - pitch: 6.2 mm - width: 23.1 mm - number of positions: 4 - color: blue

FBS-5-6

Plug-in bridge - pitch: 6.2 mm - width: 29.3 mm - number of positions: 5 - color: red

FBS-10-6-GY

Plug-in bridge - pitch: 6.2 mm - width: 60.3 mm - number of positions: 10 - color: gray

FBS-3-6

Plug-in bridge - pitch: 6.2 mm - width: 16.9 mm - number of positions: 3 - color: red

FBS-3-6-BU

Plug-in bridge - pitch: 6.2 mm - width: 16.9 mm - number of positions: 3 - color: blue

ZB-6:UNBEDRUCKT

Zack marker strip - Strip - white - unlabeled - can be labeled with: PLOTMARK - CMS-P1-PLO ...

FBS-2-6-GY

Plug-in bridge - pitch: 6.2 mm - width: 10.7 mm - number of positions: 2 - color: gray

FBS-2-6-BU

Plug-in bridge - pitch: 6.2 mm - width: 10.7 mm - number of positions: 2 - color: blue

MPS-IH-WH

Insulating Sleeve, MPS-IH WH Series | Phoenix Contact 0201663

MPS-IH-YE

Insulating sleeve - color: yellow

MPS-IH-GN

Insulating sleeve - color: green

MPS-IH-GY

Insulating sleeve - color: gray
