1706714
PCB terminal block - nominal current: 16 A - rated voltage (III/2): 400 V - nominal cross section: 1.5 mm² - pitch: 5.08 mm - number of positions: 1 - connection method: Spring-cage connection - mounting: Wave soldering - conductor/PCB connection direction: 45 ° - color: green - Pin layout: Linear pinning - Solder pin [P]: 3.5 mm. Single module for the custom grouping of different numbers of positions. An end terminal block is also needed to terminate the block (see accessories). Blocked items with different numbers of positions are also available. ...
描述
The PHOENIX CONTACT part 1706714 is a PCB terminal block with a nominal current of 16 A and a rated voltage of 400 V. It has a nominal cross section of 1.5 mm² and a pitch of 5.08 mm. This terminal block has 1 position and features a spring-cage connection for easy and secure wire termination. It is designed for wave soldering mounting and has a 45 ° conductor/PCB connection direction. The terminal block is available in a green color and has a linear pinning pin layout. The solder pin has a length of 3.5 mm. This single module allows for custom grouping of different numbers of positions. An end terminal block is required to terminate the block, which can be found in the accessories. Additionally, blocked items with different numbers of positions are also available for convenience.
搜索关键词: 1706714
规格
常见问题
1706714 是否已停产？
是的，Phoenix Contact 的 1706714 已停产（生命周期结束时间：七月 2027）。Master Electronics 是授权分销商，可能仍有剩余库存或可提供推荐的替代产品。
什么产品可以替代 1706714？

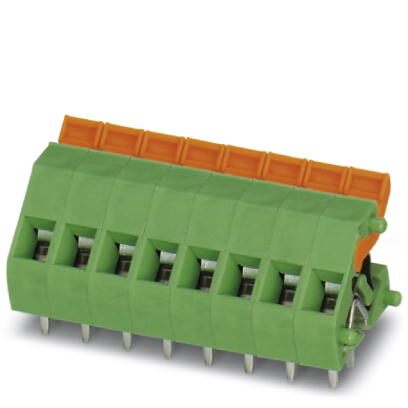

1706714 的推荐替代产品是 Phoenix Contact 的 ZFKDS-1-5-W-5-08，可从 Master Electronics 购买。
1706714 是否符合 RoHS 标准？
是的，1706714 符合 RoHS 标准。
1706714 的交货期是多少？
1706714 的标准交货期约为 12 天。有库存的数量由 Master Electronics 发货。
有存货: 1,755
可立即发货
已订购:
1,000
可以发货 10/26/26
已订购:
1,000
可以发货 10/28/26
最小订购数量: 250
此消息模板用于通知联盟会员某个订单已付款。当金额被扣款时，订单会获得已付款状态。: 250
工厂交货期 12 周
数据表
PCN - 01-Jan-2015 - INTRODUCTION OF 2D BARCODING
