1648296 by phoenix contact
Image is representational - see mfr. specs

1648296

Phoenix Contact

HEAVYCON pin insert - B24 series - 24-pos. - screw connection

产品说明书
符合 RoHS 规定
包装
附件
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

描述

1648296 is a 24-position, HEAVYCON B24 series pin insert. This screw connected pin insert has once connections per position and 24+PE positions. Conductor cross section is 14 to 20 AWG.

Search Keywords: 1648296

规格

Product Attribute
Attribute Value
Select Attribute
Products found: 0
供应商:
Phoenix Contact
部件编号:
1648296
Alias/AKA:
HC-B-24-I-UT-M
计量单位:
Per Each
RoHS:
Yes
HTS:
8536694030
COO:
CN
ECCN:
EAR99
供应商标准包装: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
Rectangular
Mounting:
Panel Mount
Body Orientation:
Straight
Gender:
PL
Pitch:
N/A
Termination Method:
Screw
Number of Contacts:
24
Maximum Voltage Rating:
500 V
Maximum Current Rating:
16 A
Operating Temperature:
-40 to 125 °C

有存货: 33

可立即发货

工厂交货期 12 周

数量
Unit Price
1
$28.25
5 +
$26.84
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

产品指南

附件

CP-HC

Coding profile - 4 coding profiles per strip - for insertion in coding keyways

HC-B-3PE

PE multiplier - for three PE connections - for HC-B (besides HC-B..E..ZZ) / HC-BB / HC-DD ...

HC-CB

Coding pin - prevents mismating of up to six connectors with an identical number of positi ...

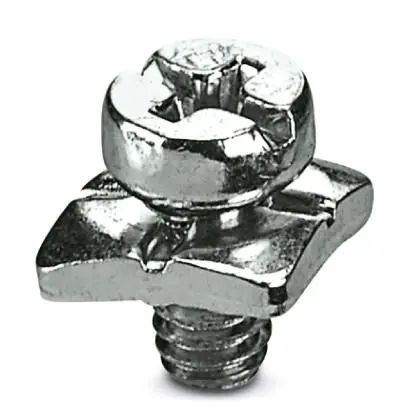

HC-B-PES

PE screw - for contact inserts HC-B / HC-BB / HC-DD / HC-D40 / HC-D64

HC-B-24-ANDOCK

Docking frame for racks - for contact inserts of B24 type - with four M5 flat headed screw ...

HC-SMR-B24

HEAVYCON connector assembly frame, for contact inserts of type B24

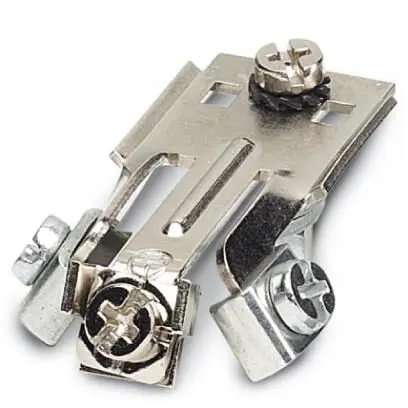

HC-B-ZG

Strain relief clamps contact inserts of series: B- - BB- - D 40 - D 64 - DD and HV - strai ...

HC-B-ZS

Strain relief clamps contact inserts of series: B- - BB- - D 40 - D 64 - DD and HV - later ...

HC-CBU

Coding socket for coding up to 16 connectors

HC-CST

Coding peg for coding up to 16 connectors

Show 8 More
