NC3MXX-BAG-POS
NC3MXX-BAG-POS
有存货: 14
起订量: 10
查看产品
NC3MXX-BAG by neutrik
图片仅供参考 - 请查看制造商规格
NEUTRIK 授权经销商

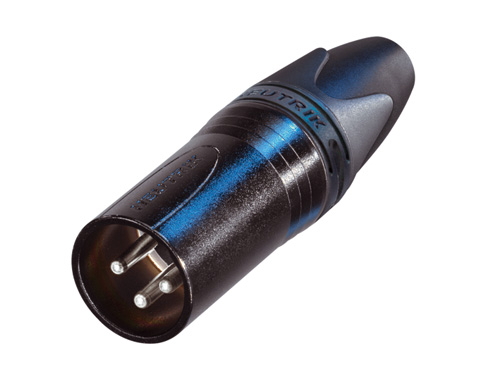

NC3MXX-BAG

XX Series - 3 pole male cable connector with black metal housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable - ...

查看数据表 询问数据表
符合 RoHS
包装
附件
请求编程报价
合规证书

描述

The NC3MXX-BAG is 3 pole male cable connector with black metal housing and silver contacts. The NC3MXX-BAG has rated voltage of < 50 V and rated current per contact of 16 A and dielectric strength of 1,5 kVdc . The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

产品亮点:

  • Male connector with improved locking recess without "window", more stringent housing increases durability
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, longlasting and dependable
  • Internal thread on shell is well proteced against any damage

搜索关键词: NC3MXXBAG

规格

产品属性
属性值
选择属性
找到的产品: 0
供应商:
NEUTRIK
部件编号:
NC3MXX-BAG
计量单位:
每 Each
RoHS:
Yes
HTS:
8536694020
COO:
LI
ECCN:
EAR99
供应商标准包装: 此信息提供给偏好按制造商标准包装数量的倍数购买的客户。最小订购数量和要求的订购倍数会与我们的价格和库存信息一起显示。
100
类型:
XLR Connector
公母类型:
M
本体方向:
Straight
安装方式:
Cable Mount
外壳材料:
Polyamide 6/6
触点数量:
3
接触点镀层:
Silver
端接方式:
Solder
工作温度:
-30 to 80 °C

常见问题

什么产品可以替代 NC3MXX-BAG？

NC3MXX-BAG 的推荐替代产品是 NEUTRIK 的 NC3MXX-BAG-POS，可从 Master Electronics 购买。

NC3MXX-BAG 是否符合 RoHS 标准？

是的，NC3MXX-BAG 符合 RoHS 标准。

NC3MXX-BAG 的交货期是多少？

NC3MXX-BAG 的标准交货期约为 3 周。有库存的数量由 Master Electronics 发货。

有存货: 902

可立即发货

最小订购数量: 10

工厂交货期 3 周

价格 (USD)

数量
单价
10
$4.81
50
$4.33
100
$4.10
300
$4.05
500
$4.04
1,000
$4.03
2,500
$4.02
5,000 +
$4.01
