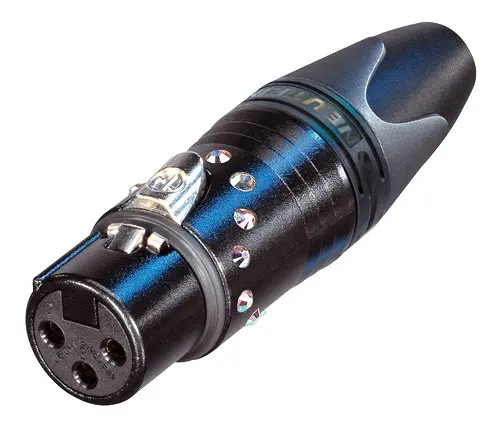

NC3FXX-B-CRYSTAL
NC3FXX-B-CRYSTAL
有存货: 1
起订量: 1
查看产品
NC3FXX-B by neutrik
图片仅供参考 - 请查看制造商规格
NEUTRIK 授权经销商

NC3FXX-B

XX Series - 3 pole female cable connector with black metal housing and gold contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable - ...

查看数据表 询问数据表
符合 RoHS
包装
附件
请求编程报价
合规证书

描述

The NC3FXX-B is 3 pole female cable connector with black metal housing and gold contacts. The NC3FXX-B has rated voltage of < 50 V and rated current per contact of 16 A and dielectric strength of 1,5 kVdc . The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

产品亮点:

  • Unique cage design of female contact for low contact resistance and high integrity
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Female connector with improved solid metal latch which is larger and easier to handle
  • Additional ground spring contacts for better shell ground continuity
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, longlasting and dependable
  • Internal thread on shell is well proteced against any damage

搜索关键词: NC3FXXB

规格

产品属性
属性值
选择属性
找到的产品: 0
供应商:
NEUTRIK
部件编号:
NC3FXX-B
计量单位:
每 Each
RoHS:
Yes
HTS:
8536694020
COO:
LI
ECCN:
EAR99
供应商标准包装: 此信息提供给偏好按制造商标准包装数量的倍数购买的客户。最小订购数量和要求的订购倍数会与我们的价格和库存信息一起显示。
100
类型:
XLR Connector
公母类型:
F
本体方向:
Straight
安装方式:
Cable Mount
外壳材料:
Polyamide 6/6
触点数量:
3
接触点镀层:
Gold Alloy Over Nickel
端接方式:
Solder
工作温度:
-30 to 80 °C

FREQUENTLY ASKED QUESTIONS

What replaces NC3FXX-B?

The recommended replacement for NC3FXX-B is NC3FXX-B-CRYSTAL from NEUTRIK, available from Master Electronics.

Is NC3FXX-B RoHS compliant?

Yes, NC3FXX-B is RoHS compliant.

What is the lead time for NC3FXX-B?

The standard lead time for NC3FXX-B is approximately 3 days. In-stock quantities ship from Master Electronics.

  可用的可能替代选项。  查看替代品

有存货: 766

可立即发货

制造商库存: 5,400   可以发货 8/28/26

最小订购数量: 5

工厂交货期 3 周 可以发货 9/3/26

价格 (USD)

数量
单价
5
$9.96
25
$6.27
100
$5.71
300
$5.29
500
$5.10
1,000
$4.86
2,500
$4.85
5,000 +
$4.83
