NC3FBH1 by neutrik
Image is representational - see mfr. specs

NC3FBH1

NEUTRIK

B Series - 3 pole female XLR receptacle - grounding: mating connector shell to pin1 and front panel - horizontal PCB mount Same as A series with exception of a metal mounting flange featuring continuous circumferential ground contact to chassis for best ...

产品说明书
符合 RoHS 规定
包装
附件
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

描述

The NC3FBH1 is 3 pole female XLR receptacle, grounding: mating connector shell to pin1 and front panel, horizontal PCB mount The NC3FBH1 has rated voltage of < 50 V and rated current per contact of 6 A and dielectric strength of 1,5 kVdc . Same as A series with exception of a metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC practice. UL recognized component.

Search Keywords: NC3FBH1

规格

Product Attribute
Attribute Value
Select Attribute
Products found: 0
供应商:
NEUTRIK
部件编号:
NC3FBH1
计量单位:
Per Each
RoHS:
Yes
HTS:
8536694040.00
COO:
LI
ECCN:
EAR99
供应商标准包装: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Type:
XLR Connector
Gender:
F
Body Orientation:
Right Angle
Mounting:
Through Hole
Housing Material:
Polyamide
Number of Contacts:
3
Contact Plating:
AuCo Over NiP15
Termination Method:
Solder
Operating Temperature:
-30 to 80 °C

有存货: 309

可立即发货

已订购: 800   可以发货 7/17/26

Minimum Order Quantity: 10

工厂交货期 15 周

数量
Unit Price
10
$4.43
50
$4.29
100
$3.98
300
$3.93
500
$3.62
1,000
$3.15
2,500
$3.14
5,000 +
$3.12
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments

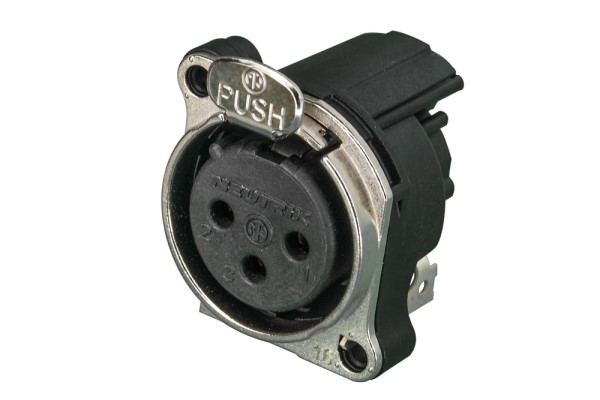

Older Equivalent
NC3FBAH1
NC3FBAH1
VIEW PRODUCT

Tools/3D Models

产品指南
