NAC3FCA by neutrik
Image is representational - see mfr. specs

NAC3FCA

NEUTRIK

powerCON 20 A - Lockable cable connector - power-in - screw terminals - blue The powerCON is a locking 3 conductor equipment AC connector with contacts for line - neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugg ...

产品说明书
符合 RoHS 规定
包装
附件
Request Programming Quote
Discontinued & Replaced
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

描述

The NAC3FCA is Lockable cable connector, power-in, screw terminals, blue The NAC3FCA has rated voltage of 250 V ac and rated current per contact of 20 A rms and dielectric strength of 4 kVdc / 2.8 kVac. The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!

Product Highlights:

  • Locking 20 A / 250 V ac appliance coupler
  • 3 contacts for line, neutral and premating safety ground
  • power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Fast and easy twist lock latching system
  • Extremely robust and reliable
  • Ergonomic design
  • User friendly latch design for easy handling
  • Unique Neutrik chuck type strain relief
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product

Search Keywords: NAC3FCA

规格

Product Attribute
Attribute Value
Select Attribute
Products found: 0
供应商:
NEUTRIK
部件编号:
NAC3FCA
计量单位:
Per Each
RoHS:
Yes
HTS:
8536694020
COO:
LI
ECCN:
EAR99
供应商标准包装: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
Power
Body Orientation:
Straight
Mounting:
Cable Mount
Gender:
F
Number of Contacts:
3
Termination Method:
Screw/Solder
Maximum Voltage Rating:
250 V
Maximum Current Rating:
20/Contact A
Operating Temperature:
-30 to 80 °C
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

有存货: 31,420

可立即发货

Minimum Order Quantity: 11

数量
Unit Price
11
$11.53
30
$10.57
50 +
$9.06
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments
建议的换货

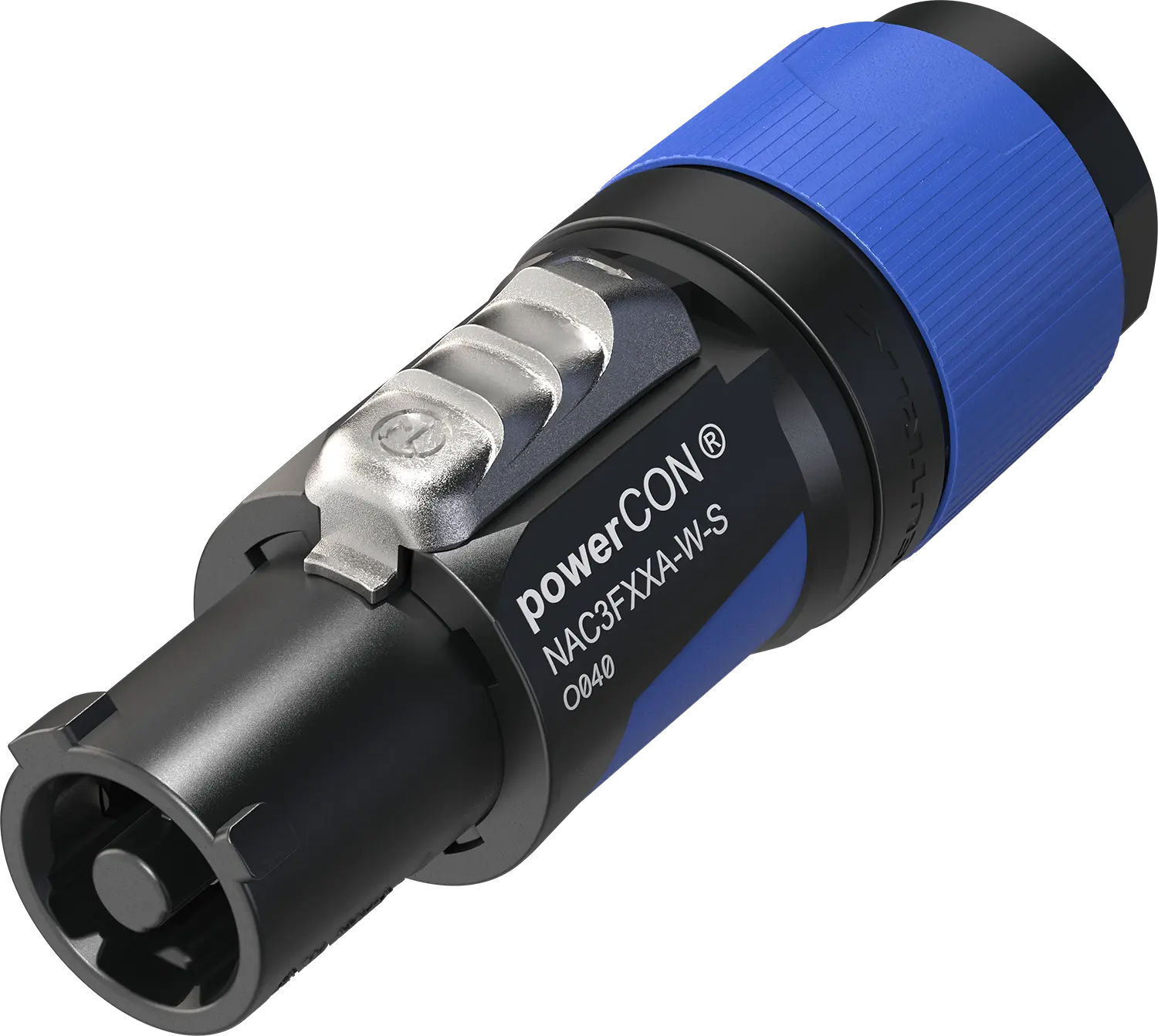

NAC3FXXA-W-S
NAC3FXXA-W-S
VIEW PRODUCT

Tools/3D Models

产品指南

Product Changes
