PIC16F684-I/SL by microchip technology

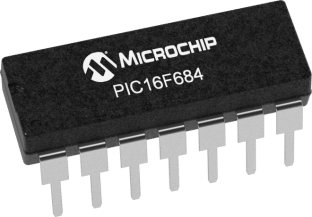

图片仅供参考 - 请查看制造商规格
Microchip Technology 授权经销商

PIC16F684-I/SL

MCU 8 Bit - Flash - PIC16 Family PIC16F6XX Series Microcontrollers - 20 MHz - 3.5 KB - 128 Byte - 14 Pins. ...

查看数据表 询问数据表
符合 RoHS
TUBE 包装
附件
请求编程报价
合规证书

描述

The PIC16F684-I/SL is a 8-bit Flash-based CMOS Microcontroller with nanoWatt technology. The low pin-count (14) PIC® flash microcontroller offers all of the advantages of the well recognized mid-range x14 architecture with standardized features including a wide operating voltage of 2.0 to 5.5V and on-board EEPROM data memory. Standard analogue peripherals include up to 8 channels of 10-bit A/D, an analogue comparator module with two comparators programmable on-chip voltage reference and an enhanced capture/compare/PWM (ECCP). The ECCP peripheral offers up to four outputs with programmable dead band delay and auto-shutdown and restart options. The PIC16F684 has a 13-bit program counter capable of addressing an 8k x 14 program memory space. Only the first 2k x 14 (0000h-07FFh) for the PIC16F684 is physically implemented. Accessing a location above these boundaries will cause a wrap around within the first 2k x 14 space.

搜索关键词: PIC16F684ISL

规格

产品属性
属性值
选择属性
找到的产品: 0
供应商:
Microchip Technology
部件编号:
PIC16F684-I/SL
计量单位:
每 Each
RoHS:
Yes
HTS:
8542310015
COO:
PH
ECCN:
EAR99
供应商标准包装: 此信息提供给偏好按制造商标准包装数量的倍数购买的客户。最小订购数量和要求的订购倍数会与我们的价格和库存信息一起显示。
57
封装类型:
TUBE
程序存储器类型:
Flash
ADC分辨率:
10 bit
程序存储器容量:
3.5 KB
工作温度:
-40 to 85 °C
RAM容量:
128 B
可编程I/O数量:
12

常见问题

PIC16F684-I/SL 是否符合 RoHS 标准？

是的，PIC16F684-I/SL 符合 RoHS 标准。

PIC16F684-I/SL 的交货期是多少？

PIC16F684-I/SL 的标准交货期约为 25 周。有库存的数量由 Master Electronics 发货。

有存货: 2,736

可立即发货

最小订购数量: 57

此消息模板用于通知联盟会员某个订单已付款。当金额被扣款时，订单会获得已付款状态。: 57

工厂交货期 25 周

价格 (USD)

数量
单价
57
$1.84
114
$1.83
285
$1.81
513
$1.80
1,026
$1.79
2,508
$1.78
5,016
$1.77
7,524 +
$1.76
供应商标准包装
