DSPIC33FJ128GP804T-I/PT
DSPIC33FJ128GP804T-I/PT
有存货: 0
起订量: 300
查看产品
DSPIC33FJ128GP804-I/PT by microchip technology

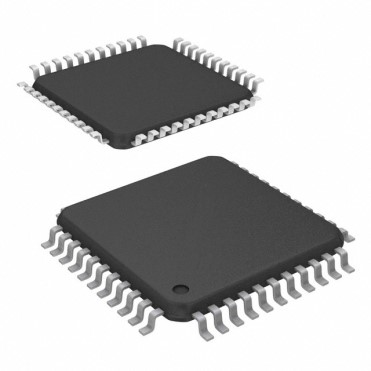

图片仅供参考 - 请查看制造商规格
Microchip Technology 授权经销商

DSPIC33FJ128GP804-I/PT

MCU - 16-bit dsPIC - 128KB Flash - 16KB RAM - -40°C to +85°C - 3.3V - 44-Pin TQFP - Tray ...

查看数据表 询问数据表
符合 RoHS
TRAY 包装
附件
请求编程报价
合规证书
此产品可能需要额外文件。发货可能会延迟 1-2 天。

描述

The DSPIC33FJ128GP804-I/PT is a 16-bit Digital Signal Controller with advanced analogue. The CPU module has a 16-bit (data) modified Harvard architecture with an enhanced instruction set, including significant support for DSP. The CPU has a 24-bit instruction word with a variable length opcode field. The Program Counter (PC) is 23-bit wide and addresses up to 4M x 24-bit of user program memory space. The actual amount of program memory implemented varies by device. A single-cycle instruction prefetch mechanism is used to help maintain throughput and provides predictable execution. All instructions execute in a single cycle, with the exception of instructions that change the program flow, the double-word move (MOV.D) instruction and the table instructions. Overhead-free program loop constructs are supported using the DO and REPEAT instructions, both of which are interruptible at any time.

搜索关键词: DSPIC33FJ128GP804IPT

规格

产品属性
属性值
选择属性
找到的产品: 0
供应商:
Microchip Technology
部件编号:
DSPIC33FJ128GP804-I/PT
计量单位:
每 Each
RoHS:
Yes
HTS:
8542310020
COO:
TH
ECCN:
3A991.a.2
供应商标准包装: 此信息提供给偏好按制造商标准包装数量的倍数购买的客户。最小订购数量和要求的订购倍数会与我们的价格和库存信息一起显示。
160
封装类型:
TRAY
ADC分辨率:
10/12 bit
可编程I/O数量:
35
程序存储器容量:
128 KB
工作温度:
-40 to 85 °C
程序存储器类型:
Flash
RAM容量:
16 KB
  提供不同的包装选项。  查看替代品

有存货: 327

可立即发货

最小订购数量: 5

工厂交货期 29 周

价格 (USD)

数量
单价
5
$7.00
25
$6.42
50
$6.41
160
$6.01
320
$5.79
640
$5.78
1,120
$5.72
2,560 +
$5.65
